  9. Electric Actuator, -40 to 140F

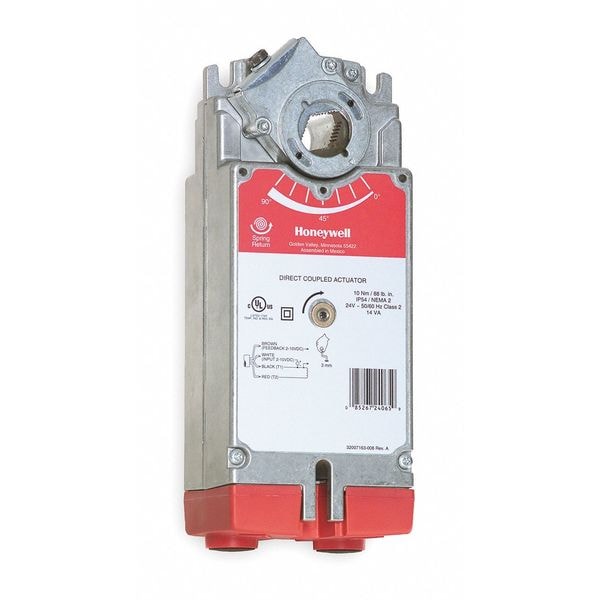

Honeywell Electric Actuator, -40 to 140F MS7520A2007/U - main

Electric Actuator, -40 to 140F

  • Mfr # MS7520A2007/U

  • Zoro # G1285523

product price: $530.99
/ea
Free Shipping & Returns

Key Features

Mounting Type
Direct Mount
Spring Return
Spring Return
Signal Type
Floating Point, Proportional
Torque
175 in-lb
Voltage
24V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MS7520A2007/U
Zoro #
G1285523
UPC #
085267241274
Country of Origin
Mexico

Dimensions

Width
3 15/16 in
Depth
2 15/16 in
Height
9 3/4 in
Overall Width
4 in
Overall Height
9 3/4 in
Overall Depth
3 in

Details

Mounting Type
Direct Mount
Spring Return
Spring Return
Signal Type
Floating Point, Proportional
Torque
175 in-lb
Voltage
24V AC
Type
Spring-Return
Motor Direction
CW or CCW
Item
Actuator
Timing
20 sec Spring Return, 90 sec Nominal @ 60 Hz
Switch Type
SPDT
Power Consumption
16 VA
Includes
3 mm Crank, Mounting Bracket, Self-Centering Shaft Adapter
Stroke Deg.
95 +/-3
For Use With
Valves and Dampers
Electrical Connections
Enclosed Screw Terminal Strip
Shaft Type
Self-Centering Clamping
Ambient Temp. Range
-40 Degrees to 140 Degrees F
Application
Ball Valves, Butterfly Valves, Cage Valves, Dampers, Globe Valves
Stroke Degree
95 Degrees
Input Voltage
24V AC
Shaft Rotation
CW/CCW
Time to Close
90 sec
Minimum Operating Temperature
-40 Degrees F
Valve Application
Damper and Valve
Number of Auxiliary Switches
0
Product Type
Actuator
Contact Form
SPDT
Rated Torque
175 in-lb
Maximum Operating Temperature
140 Degrees F
Electrical Connection Type
Screw Terminals

Description

Actuator, Valve Application Damper and Valve, Signal Type Floating Point, Proportional, Rated Torque 175 in-lb, Input Voltage 24V AC, Contact Form SPDT, Electrical Connection Type Screw Terminals, Spring Return Spring Return, Time to Close 90 sec, Shaft Type Self-Centering Clamping, Shaft Rotation CW/CCW, Stroke Degree 95 Degrees , Mounting Type Direct Mount, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature -40 Degrees F, Overall Width 4 in
