  11. Fan Coil Thermostat, Low Voltage, White

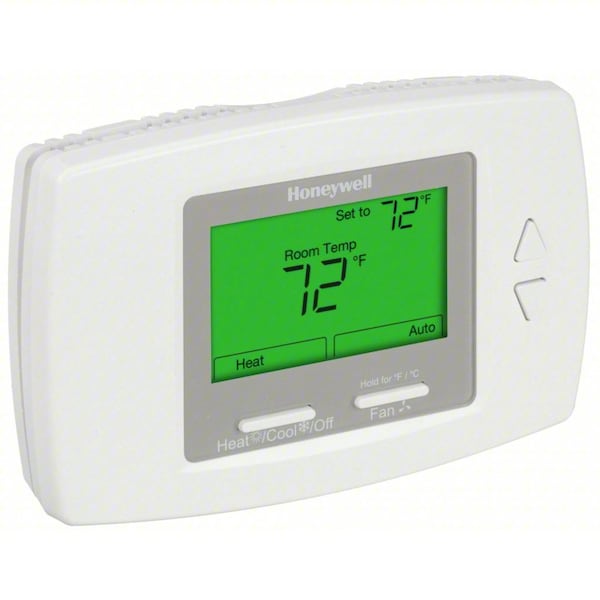

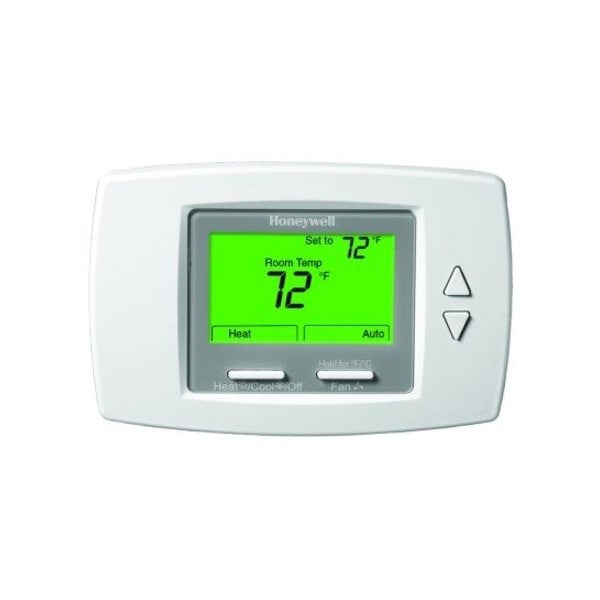

Honeywell Fan Coil Thermostat, Low Voltage, White TB8575A1000/U - main

Fan Coil Thermostat, Low Voltage, White

  • Mfr # TB8575A1000/U

  • Zoro # G1684952

product price: $163.99
/ea
Free Shipping & Returns

Key Features

Includes
Mounting Hardware
Color
White
Height
3.8"
Fan Switching
Hi-Med-Low-Auto-Off
Voltage
24V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TB8575A1000/U
Zoro #
G1684952
UPC #
085267314435
Country of Origin
United States

Dimensions

Height
3.8"
Height (In.)
3 13/16 in
Depth (In.)
1 1/8 in
Width (In.)
5 13/16 in
Depth
1.1"
Overall Height
3 13/16 in
Overall Width
5 13/16 in
Width
5.8"
Digit Size
Standard
Overall Depth
1 1/8 in
Screen Height
1 9/16 in
Screen Width
2 1/2 in

Details

Item
Fan Coil Thermostat
Includes
Mounting Hardware
Color
White
Fan Switching
Hi-Med-Low-Auto-Off
Voltage
24V
Thermostat Number of Pipes
2 or 4
Enclosure Type
Plastic
Rated For Pilot Duty
No
Differential (Deg. F)
+/-2
Fan Coil Thermostat Type
Low Voltage
Thermostat Number of Speeds
3
Number of Stages
1
Thermostat Switch Type
5 Relays
Thermostat Heating/Cooling
Heating/Cooling
Thermostat Control Range
50 Degrees to 90 Degrees F
Thermostat Item
Fan Coil Thermostat
Temp. Settings per Day
1
Display
LCD
Mounting Position
Direct Mount on Junction box
Application
Heat and Cool
Input Voltage
20 to 30
System Switching
Auto-Heat-Cool-Off
Type
Low Voltage
Switch Type
(5) SPST
Number of Zones
1
Dehumidification Control
No
Dual Transformer Compatible
No
System/Fan Settings
Auto-Cool-Heat-Off, Hi-Med-Low-Auto-Off
Number of Pipes
2 or 4
Humidification Control
No
Temperature Control Range
50 Degrees to 99 Degrees F
Temperature Limiting
Yes
Number of Relay Inputs
5
Backlit Screen
Yes
Mounting Direction/Shape
Horizontal
Operating Temperature Range
50 Degrees to 90 Degrees F
Programming Capability
Not Programmable
Temperature Differential
2 Degrees F
Changeover Type
Automatic and Manual
Application/Stages
Heat and Cool, 1H/1C
System Settings
Auto-Cool-Heat-Off
Mounting Direction
Horizontal
Occupancy Sensor
Compatible with Occupancy Sensor
Contact Rating
24V AC
Thermostat Type
Low Voltage
Shape
Rectangle
Includes Positive Off
No
Temperature Scale
Celsius/Fahrenheit
Backlit Screen Color
Green
Minimum Control Temperature
50 Degrees F
Control Type
Push Button
Operating Humidity Range
5 to 95 %
Temperature settings per day
Manual Adjust
Key Pad Lockout
Yes
Housing Color
White
Temperature Readout
Yes
Display Type
Digital
Terminal Designations
GH, GL, GM, N, PS, R, RS, SB, SC, W/Y, Y/A
Housing Material
Plastic
Differential Type
Fixed
Fan Settings
Hi-Med-Low-Auto-Off
Temporary Program Override
Yes
Stages
1H/1C
Compatible System Type
Fan Coil Unit
Maximum Control Temperature
99 Degrees F

Description

Fan Coil Thermostat, Low Voltage, Thermostat Switch Type 5 Relays, Switch Action -, Thermostat Control Range 50 Degrees to 90 Degrees F, Differential (Deg. F) +/-2, Thermostat Heating/Cooling Heating/Cooling, Thermostat Number of Pipes 2 or 4, Thermostat Number of Speeds 3, Fan Switching Hi-Med-Low-Auto-Off, System Switching Auto-Heat-Cool-Off, Sensor Type -, 3 13/16 in, Sensing Bulb Dia. (In.) -, 5 13/16 in, Sensing Bulb Length (In.) -, 1 1/8 in, Capillary Length (In.) -
