  11. 2-Wire IAQ Kit, 7 Programs, 4 H, 2 C, Hardwired, 24VAC

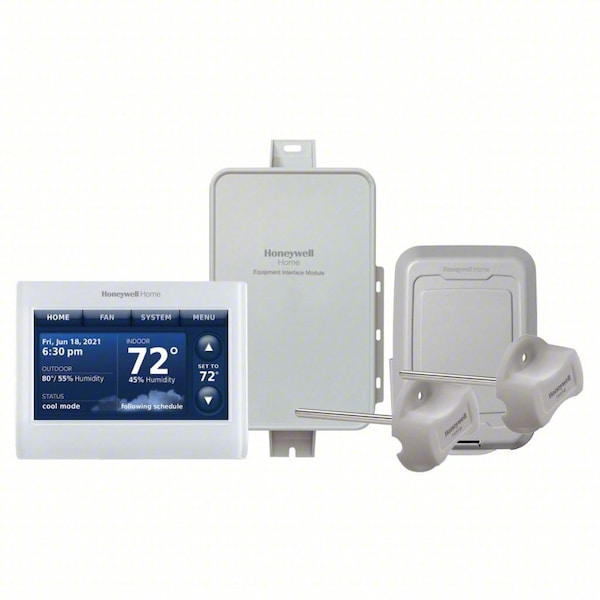

Honeywell Home 2-Wire IAQ Kit, 7 Programs, 4 H, 2 C, Hardwired, 24VAC YTHX9421R5101WW/U - main

2-Wire IAQ Kit, 7 Programs, 4 H, 2 C, Hardwired, 24VAC

  • Mfr # YTHX9421R5101WW/U

  • Zoro # G4017395

product price: $572.99
/ea
Free Shipping & Returns

Key Features

Voltage
24VAC
Stages Heat
4
Mounting Type
Horizontal
Color
Premier White
Control Range
Heat 40 Degrees to 90 Degrees F, Cool 50 Degrees to 99 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YTHX9421R5101WW/U
Zoro #
G4017395
UPC #
-
Country of Origin
Mexico

Dimensions

Height
3 1/2"
Width
4 1/2"
Depth
7/8 in
Overall Width
4 1/2 in
Overall Depth
7/8 in
Overall Height
3 1/2 in
Digit Size
Standard

Details

Item
2-Wire IAQ Kit
Voltage
24VAC
Stages Heat
4
Mounting Type
Horizontal
Color
Premier White
Control Range
Heat 40 Degrees to 90 Degrees F, Cool 50 Degrees to 99 Degrees F
System Switching
Auto-Manual
Stages Cool
2
Dual Transformer Compatible
Yes
Power Method
Hardwired
Programs per Week
7
Temporary Temperature Hold
Yes
Temperature Limiting
Yes
Display Type
High Definition Digital
Terminal Designations
R, RC, RH, C, W-O/B, W2-AUX1, W3-AUX2, Y, Y2, G, A-L/A, U1, U1, U2, U2, U3, U3, S1, S1, S2, S2, S3, S3, S4, S4, A, B, C, D
Filter Indicator
Yes
Remote Sensing Capability
Yes
Features
Customizable High-Definition, Full Color Display Which is Smaller and Sleeker - 60% Smaller Footprint
Battery Backup
Yes
WiFi Capability
No
Fan Switching
Auto-On-Off-Circulate
Dehumidification Control
Yes
Low Battery Indicator
Yes
Humidification Control
Yes
Temporary Program Override
Yes
Includes
Equipment Interface Module, Outdoor Air Sensor, (2) Duct Sensors, Lithium Battery
Programmable Fan
Yes
Key Pad Lockout
Yes
Automatic Changeover
Yes
Batteries Included
Yes
Temp. Settings per Day
4
Standards
Energy Star
Mounting
Horizontal
Type
RedLink Wireless
Stages
3H/2C Conventional, 4H/2C Heat Pump
Control Type
Touch Screen
Occupancy Sensor
Compatible with Occupancy Sensor
Number of Cooling Stages - Conventional System
2
Temperature Readout
Yes
Includes Positive Off
Yes
Minimum Operating Humidity
5 %
Mounting Direction
Horizontal
Application
Heat and Cool
Shape
Rectangle
Frequency
50 Hz, 60 Hz
Temperature Sensitivity
+/-1 Degrees F
Contact Rating
18/30V AC
System Settings
Auto-Cool-Emergency Heat-Heat-Off
Filter Change Reminder
Yes
Housing Color
White
System/Fan Settings
Auto-Cool-Emergency Heat-Heat-Off/Auto-Circulate-Follow Schedule-On
Maximum Operating Humidity
90 %
Mounting Direction/Shape
Horizontal
Wireless
No
Maximum Control Temperature
99 Degrees F
Fan Settings
Auto-Circulate-On
Electrical Connection Type
Screw Terminals
Compatible System Type
Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump with Aux, Heat Pump without Aux, Hydronic Systems
Wireless System Compatibility
RedLink
Temperature Scale
Fahrenheit/Celsius
Programming Capability
7 Day
Maximum Operating Temperature
120 Degrees F
Operating Humidity Range
5% to 90% RH
Thermostat Type
Low Voltage
Sensor Location
Remote
Minimum Control Temperature
40 Degrees F
Number of Heating Stages - Heat Pump System
4
Operating Temperature Range
32 Degrees to 120 Degrees F
Number of Cooling Stages - Heat Pump System
2
Number of Heating Stages - Conventional System
3
Temperature Differential
1 Degrees F
Includes Batteries
Yes
Temperature Control Range
40 Degrees to 99 Degrees F
Minimum Operating Temperature
32 Degrees F
Number of Zones
1
Application/Stages
Heat and Cool; 3H/2C Conventional, 4H/2C Heat Pump
Changeover Type
Automatic and Manual
Temperature settings per day
4

Description

Wireless Thermostat Kit, Stages Heat 4, Stages Cool 2, Temp. Settings per Day 4, Programs per Week 7, Terminal Designations A, A-L/A, B, C, D, G, R, RC, RH, S1, S2, S3, S4, U1, U2, U3, W-O/B, W2-AUX1, W3-AUX2, Y, Y2, WiFi Capability No, System Switching Auto or Manual, Fan Switching Auto-On-Off-Circulate, Display Type Digital, Key Pad Lockout Yes, Programmable Fan Yes, Automatic Changeover Yes, Humidification Control Yes, Dehumidification Control Yes, Remote Sensing Capability Yes

Restrictions

Hazardous material
