Shop HONEYWELL HOME

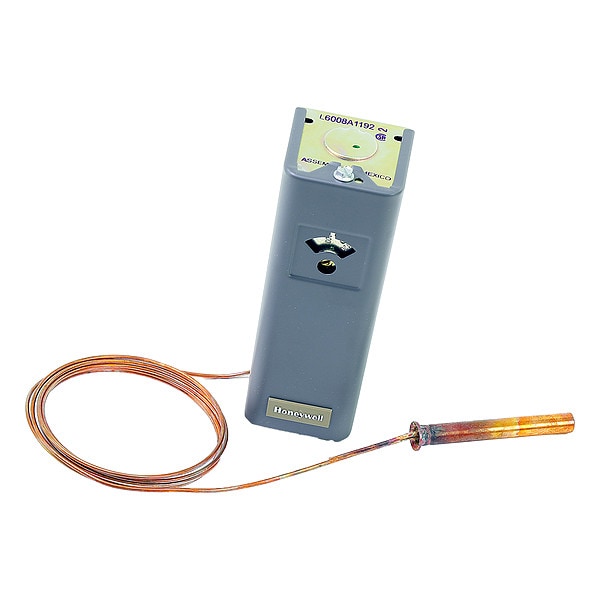

AQUASTAT, SPDT SWITCH, 100-240F, ADJ DIFF 5

  • Mfr # L6008A1192

  • Zoro # G6401929

product price:  $323.99
/ea
Free Shipping & Returns

Key Features

Standards
CSA File No. LR95329-1
Application
Circulator, Low Limit
Overall Depth
2 in
Contact Form
SPDT
Maximum Control Temperature
240 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
L6008A1192
Zoro #
G6401929
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Depth
2 in
Capillary Tube Length
66 in
Overall Width
2 1/8 in
Overall Height
5 5/8 in

Details

Item
Aquastat Relay
Standards
CSA File No. LR95329-1
Application
Circulator, Low Limit
Contact Form
SPDT
Maximum Control Temperature
240 Degrees F
Minimum Control Temperature
100 Degrees F
Burner Circuit Voltage Type
Millivolt
Locked Rotor Current @ 120V
48 A
Housing Color
Beige
Product Type
Low Limit Controller
Housing Material Finish
Gray
Differential Temperature
5 Degrees F to 30 Degrees F, Adjustable
Sensor Location
Remote
Input Voltage
120V AC @ 8A, 240V AC @ 5.1A
Full Load Current @ 240V AC
5.1 A
Mounting Orientation
Horizontal, Vertical
Number of Switches
3
Locked Rotor Current @ 240V
30.6 A
Full Load Current @ 120V AC
8 A

Description

Aquastat Relay, Application Circulator, Low Limit, Maximum Control Temperature 240 Degrees F, Minimum Control Temperature 100 Degrees F, Differential Temperature 5 Degrees F to 30 Degrees F, Adjustable, Mounting Orientation Horizontal, Vertical, Number of Switches 3, Burner Circuit Voltage Type Millivolt, Capillary Tube Length 66 in, Contact Form SPDT, Product Type Low Limit Controller, Sensor Location Remote, Overall Depth 2 in, Overall Height 5 5/8 in, Overall Width 2 1/8 in
