  9. Conversion Kit, Inlet/Outlet 1/2 x 1/2 In

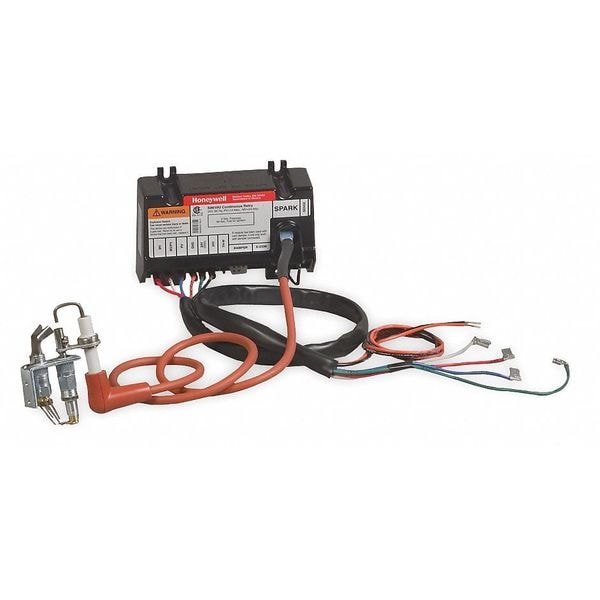

Honeywell Home Conversion Kit, Inlet/Outlet 1/2 x 1/2 In Y8610U4001 - main

Conversion Kit, Inlet/Outlet 1/2 x 1/2 In

  • Mfr # Y8610U4001

  • Zoro # G2199994

product price: $410.99
/ea
Free Shipping & Returns

Key Features

Width (In.)
3 7/8 in
Retries
Continuous
Includes
Gas Valve, Ignition Cable, Ignition Module, Pilot Burner Hardware, Wiring Harness
Method of Opening
Standard
Inlet/Outlet (In.)
1/2 x 1/2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
Y8610U4001
Zoro #
G2199994
UPC #
-
Country of Origin
Mexico

Dimensions

Width (In.)
3 7/8 in
Depth (In.)
2 5/8 in
Height (In.)
3 15/16 in

Details

Retries
Continuous
Includes
Gas Valve, Ignition Cable, Ignition Module, Pilot Burner Hardware, Wiring Harness
Method of Opening
Standard
Inlet/Outlet (In.)
1/2 x 1/2
Lockout Time (Sec.)
15 or 90
Amps AC
0.7 A
Gas Type
LP/NG
Item
Intermittent Pilot Ignitor
Electrical Ratings
24V AC
Pressure Setting Range (In. WC)
3.5
For Use With
Residential, Commercial Heating Equipment
Voltage
24
Type
Intermittent Pilot
Prepurge Time (Sec.)
0 or 30 sec
Control Volts
24 V
Operation Description
Convert Conventional Standing Pilot Systems To Intermittent Pilot Systems, After Trial For Ignition, Pilot Gas Shuts Off For 5 Minutes, Then Another Trial For Pilot Ignition Takes Place
BtuH Capacity
150,000
Electrical Connections
30 in Wiring Harness With Stud Terminal And 1/4 in Quick-Connect Terminal
Bracket
No
Product Type
Intermittent Pilot Ignitor
Automatic Reset Time
5 min
Lock Out Time
15 sec
Frequency
60 Hz
Ignition Cycle Time
90 seconds (Spark)
Thermostat Anticipator Setting
Thermostat Anticipator
For Fuel Type
LP, Natural Gas
Minimum Operating Temperature
-40 Degrees F
Main Valve Current Output
24 A
Flame Sensor Current Output
1 uA
Number of Retries
3
Maximum Operating Temperature
165 Degrees F
Replacement Type
Universal
Control Voltage
24V AC
Pre-Purge Time
30 sec
Input Voltage
24V AC

Description

Intermittent Pilot Ignitor, Product Type Intermittent Pilot Ignitor, Maximum Operating Temperature 165 Degrees F, Minimum Operating Temperature -40 Degrees F, Lock Out Time 15 sec, Pre-Purge Time 30 sec, Number of Retries 3, Main Valve Current Output 24 A, Flame Sensor Current Output 1 uA, Ignition Cycle Time 90 seconds (Spark), Automatic Reset Time 5 min, Control Voltage 24V AC, Thermostat Anticipator Setting Thermostat Anticipator, Input Voltage 24V AC, For Fuel Type LP, Natural Gas
