Shop HONEYWELL HOME

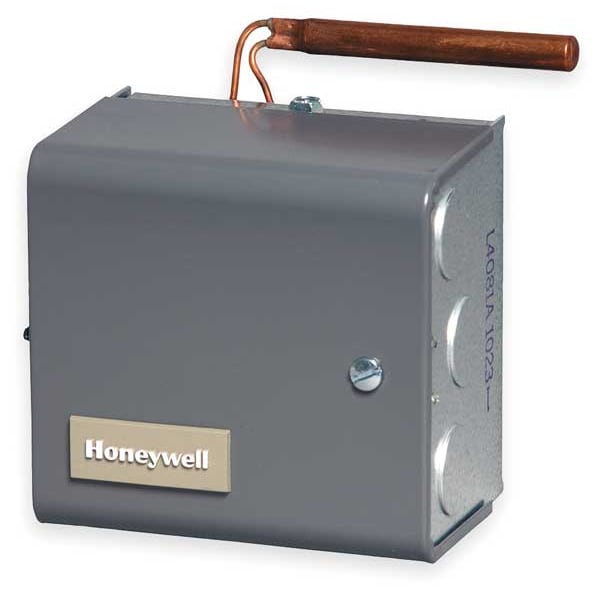

Dual Aquastat Controller, Differential 10

  • Mfr # L4081B1047

  • Zoro # G1644702

product price:
$
343.99
/ea
Free Shipping & Returns

Key Features

Temp. Range
High Limit 130 Degrees to 240 Degrees F, Low Limit 110 Degrees to 220 Degrees F
Differential
High Limit 10 Degrees F Fixed, Low Limit 10 Degrees to 25 Degrees F Adj.
Application
Circulator, High Limit
Mounting
Horizontal
Burner Control Circuit
24V or 120V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
L4081B1047
Zoro #
G1644702
UPC #
-
Country of Origin
United States
Item
Circulator Controller
Temp. Range
High Limit 130 Degrees to 240 Degrees F, Low Limit 110 Degrees to 220 Degrees F
Differential
High Limit 10 Degrees F Fixed, Low Limit 10 Degrees to 25 Degrees F Adj.
Application
Circulator, High Limit
Mounting
Horizontal
Burner Control Circuit
24V or 120V
Full Load Amps @ 120VAC
8 A
Burner Control Circuit @ 120V (A)
8 A
Humidity Range (% RH)
Non-Condensing 0 To 95
Full Load Amps @ 240VAC
5.1 A
Millvolt
025 A @ 025 To 12 Vdc
Locked Rotor Amps @ 120V
48 A
Requires
3/4 in Spud 14 NPT
System Switching
SPST
Locked Rotor Amps @ 240V
30.6 A
Agency Compliance
UL & CSA
Burner Control Circuit @ 24V (A)
5.1 A
Type
High Limit and Circulator
Product Type
Circulator Controller
Maximum Control Temperature
240 Degrees F
Minimum Control Temperature
130 Degrees F
Input Voltage
24V DC
Locked Rotor Current @ 120V
48 A
Mounting Orientation
Horizontal
Full Load Current @ 240V AC
5.1 A
Locked Rotor Current @ 240V
30.6 A
Reset Type
Automatic Reset
Number of Switches
2
Burner Circuit Voltage Type
Millivolt
Full Load Current @ 120V AC
8 A
Differential Temperature
10 Degrees F Fixed (High Limit), 10 Degrees F to 25 Degrees F Adjustable (Low Limit)
Contact Form
SPST
Standards
LR95329-1, MBPR2, MP466, UL Listed
Auto/Manual Switch Included
Yes

Description

Circulator Controller, Application Circulator, High Limit, Maximum Control Temperature 240 Degrees F, Minimum Control Temperature 130 Degrees F, Differential Temperature 10 Degrees F Fixed (High Limit), 10 Degrees F to 25 Degrees F Adjustable (Low Limit), Mounting Orientation Horizontal, Number of Switches 2, Burner Circuit Voltage Type Millivolt, Spud Size 3/4 in NPT, Contact Form SPST, Multizone Control Compatible Not Applicable, Product Type Circulator Controller
