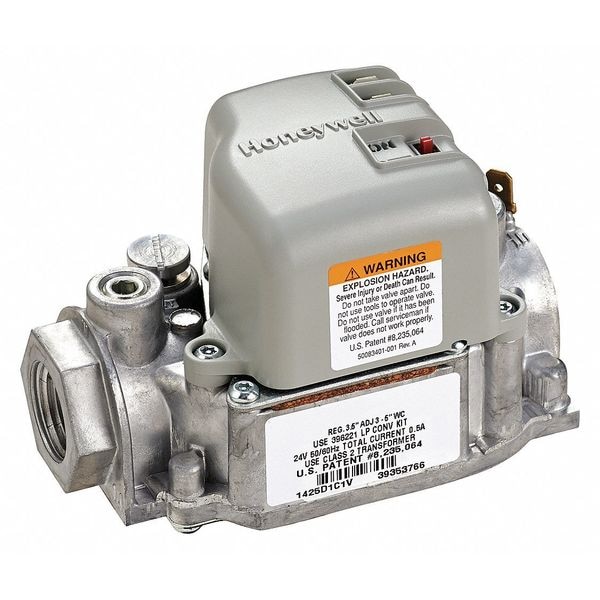

Honeywell Home Gas Valve, NG/LP, Direct, 24 V, 3.0 in wc to 5.0 in wc, Slow Opening, 1/2 in Inlet Size VR8215T1502 - main

Gas Valve, NG/LP, Direct, 24 V, 3.0 in wc to 5.0 in wc, Slow Opening, 1/2 in Inlet Size

  • Mfr # VR8215T1502

  • Zoro # G0080617

product price:  $108.99
/ea
Free Shipping & Returns

Key Features

BtuH Capacity
150,000 to 200,000
Coil Volts
24 V
Gas Type
NG/LP
Ignition Type
Direct
Inlet Size
1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
VR8215T1502
Zoro #
G0080617
UPC #
-
Country of Origin
Mexico

Dimensions

Inlet Size
1/2 in
Outlet Size
1/2 in
Pressure Tap Connection Size
1/8 in
Overall Depth
2 11/16 in
Overall Height
3 3/8 in
Port Connection Size
1/2 in
Overall Length
4 7/16 in

Details

BtuH Capacity
150,000 to 200,000
Coil Volts
24 V
Gas Type
NG/LP
Ignition Type
Direct
Valve Type
Slow Opening
For Use With
Furnaces
Ambient Temp. Range
-40 Degrees F to +175 Degrees F
Item
Gas Valve
LP Conversion Kit
Yes
Pressure Setting Range
3.0 in wc to 5.0 in wc
Flow Direction
Straight-Thru
Includes
LP Conversion Kit
Inlet Pressure Tap
Yes
For Media
Liquid Propane, Natural Gas
Port Connection Gender
Female
Electrical Connections
Quick Connect Terminal
Current
0.5 A
Heating Capacity - Maximum
200,000 BtuH
Manufacturer Series
VR8215
Operating Temperature - Minimum
-40 Degrees F
Includes Thermostat
Mechanical Thermostat Not Included
Includes Conversion Kit
Conversion Kit Included
Pressure Tap Connection Type
NPT
Pilot Type
Direct Spark Ignition, Hot Surface Ignition
Reducer Bushings Included
None
Includes Pressure Regulator
Pressure Regulator Included
Includes Pressure Tap
Pressure Tap Inlet Included, Pressure Tap Outlet Included
Installation Orientation
Versatile
Port Connection Type
NPT
ANSI Rating
ANSI Z223.1 NFPA No. 54
Includes Side Taps
Side Taps Not Included
Application
Furnaces
Valve Design
Dual
Sensing Type
Flame Sensor
Opening Characteristic
Slow Opening
Includes Pilot Generator Kit
Pilot Generator Kit Not Included
Voltage
24V AC
Operating Temperature - Maximum
175 Degrees F

Description

Gas Valve, ANSI Rating ANSI Z223.1 NFPA No. 54, Application Furnaces, Current 0.5 A, Electrical Connections Quick Connect Terminal, Flow Direction Straight-Thru, For Media Liquid Propane, Natural Gas, Heating Capacity - Maximum 200,000 BtuH, Includes Conversion Kit Conversion Kit Included, Includes On/Off Switch Not Applicable, Includes Pilot Generator Kit Pilot Generator Kit Not Included, Includes Pressure Regulator Pressure Regulator Included
