  9. Gas Valve, NG/LP, Direct Spark Ignition, Hot Surface Ignition, Intermittent Pilot, 24 V, 3.5 in wc

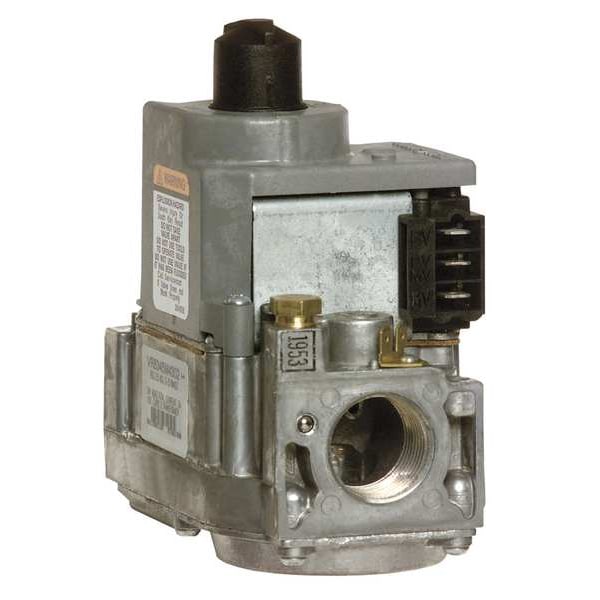

Honeywell Home Gas Valve, NG/LP, Direct Spark Ignition, Hot Surface Ignition, Intermittent Pilot, 24 V, 3.5 in wc VR8345K4809 - main

Gas Valve, NG/LP, Direct Spark Ignition, Hot Surface Ignition, Intermittent Pilot, 24 V, 3.5 in wc

  • Mfr # VR8345K4809

  • Zoro # G4717237

product price: $216.99
/ea
Free Shipping & Returns

Key Features

BtuH Capacity
415,000 BtuH
Coil Volts
24 V
Gas Type
NG/LP
Ignition Type
Direct Spark Ignition, Hot Surface Ignition, Intermittent Pilot
Inlet Size
3/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
VR8345K4809
Zoro #
G4717237
UPC #
-
Country of Origin
Mexico

Dimensions

Inlet Size
3/4 in
Outlet Size
3/4 in
Pressure Tap Connection Size
1/8 in
Overall Depth
2 11/16 in
Overall Length
4 1/16 in
Overall Height
5 3/8 in
Port Connection Size
3/4 in

Details

BtuH Capacity
415,000 BtuH
Coil Volts
24 V
Gas Type
NG/LP
Ignition Type
Direct Spark Ignition, Hot Surface Ignition, Intermittent Pilot
Reducer Bushing Kit
(2) 3/4 x (1) 1/2 in
Valve Type
Slow Opening
Amps AC
0.7 A
Ambient Temp. Range
-40 to 175 Degrees F
Item
Gas Valve
LP Conversion Kit
Yes
Pressure Setting Range
3.5 in wc
Flow Direction
Straight-Thru
Includes
(2) 3/4 x (1) 1/2 in Reducer Bushings
Side Taps
No
Inlet Pressure Tap
Yes
Max. Inlet Pressure
1/2 psi
Standards
CSA International: 112395, UL Component Recognized MCCZ2.MH5323
For Media
Liquid Propane, Natural Gas
Voltage
24V AC
Includes Side Taps
Side Taps Not Included
Heating Capacity - Maximum
415,000 BtuH
Includes Pressure Regulator
Pressure Regulator Included
Includes Conversion Kit
Conversion Kit Included
Electrical Connections
Quick Connect Terminal
Reducer Bushings Included
(2) 3/4 x (1) 1/2 in
Installation Orientation
Vertical
Includes Pressure Tap
Pressure Tap Inlet Included, Pressure Tap Outlet Included
Opening Characteristic
Slow Opening
Current
0.7 A
Port Connection Gender
Female
Manufacturer Series
VR8345
Includes Thermostat
Mechanical Thermostat Not Included
Valve Design
Dual
Sensing Type
Flame Sensor
Port Connection Type
NPT
Includes Pilot Generator Kit
Pilot Generator Kit Not Included
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
175 Degrees F
Pilot Type
Direct Spark Ignition, Hot Surface Ignition, Intermittent Pilot
Pressure Tap Connection Type
NPT
ANSI Rating
ANSI Z223.1 NFPA No. 54

Description

Gas Valve, ANSI Rating ANSI Z223.1 NFPA No. 54, Current 0.7 A, Electrical Connections Quick Connect Terminal, Flow Direction Straight-Thru, For Media Liquid Propane, Natural Gas, Heating Capacity - Maximum 415,000 BtuH, Includes Conversion Kit Conversion Kit Included, Includes On/Off Switch Not Applicable, Includes Pilot Generator Kit Pilot Generator Kit Not Included, Includes Pressure Regulator Pressure Regulator Included
