  9. Gas Valve, NG/LP, Direct Spark Ignition, Hot Surface Ignition, Intermittent Pilot, 24 V, 3.5 in wc

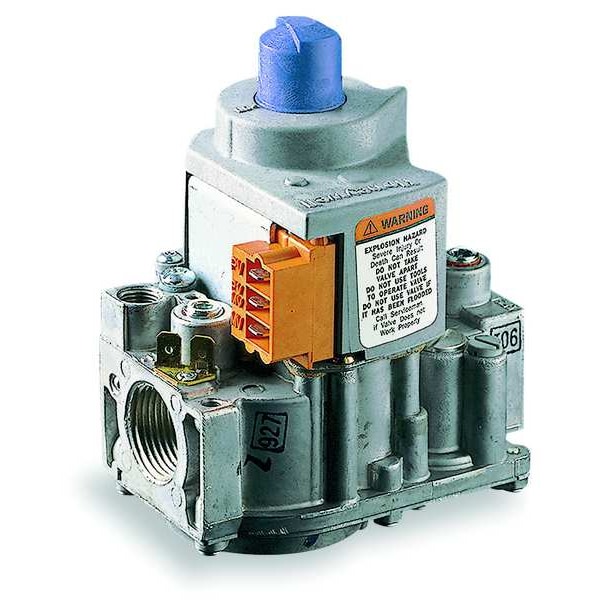

Honeywell Home Gas Valve, NG/LP, Direct Spark Ignition, Hot Surface Ignition, Intermittent Pilot, 24 V, 3.5 in wc VR8345M4302 - main

Gas Valve, NG/LP, Direct Spark Ignition, Hot Surface Ignition, Intermittent Pilot, 24 V, 3.5 in wc

  • Mfr # VR8345M4302

  • Zoro # G3461762

product price: $206.99
/ea
Free Shipping & Returns

Key Features

BtuH Capacity
300,000 BtuH
Coil Volts
24 V
Gas Type
NG/LP
Ignition Type
Direct Spark Ignition, Hot Surface Ignition, Intermittent Pilot
Inlet Size
3/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VR8345M4302
Zoro #
G3461762
UPC #
-
Country of Origin
Mexico

Dimensions

Inlet Size
3/4 in
Outlet Size
3/4 in
Overall Height
5 3/8 in
Pressure Tap Connection Size
1/8 in
Overall Depth
2 11/16 in
Overall Length
4 1/16 in
Port Connection Size
3/4 in

Details

BtuH Capacity
300,000 BtuH
Coil Volts
24 V
Gas Type
NG/LP
Ignition Type
Direct Spark Ignition, Hot Surface Ignition, Intermittent Pilot
Reducer Bushing Kit
(2) 3/4 x 1/2 in and (1) 1/2 x 3/8 in
Valve Type
Standard Opening
Amps AC
0.7 A
Ambient Temp. Range
-40 to 175 Degrees F
Item
Gas Valve
LP Conversion Kit
Yes
Pressure Setting Range
3.5 in wc
Flow Direction
Straight-Thru
Includes
(2) 3/4 x 1/2 in and (1) 1/2 x 3/8 in Reducer Bushings, Natural to LP Gas Conversion Kit
Max. Inlet Pressure
1/2 psi
Side Taps
Yes
Inlet Pressure Tap
Yes
Standards
CSA International: 112395, UL Component Recognized MCCZ2.MH5323
Pilot Type
Direct Spark Ignition, Hot Surface Ignition, Intermittent Pilot
Opening Characteristic
Fast Opening
Current
0.7 A
Includes Pressure Tap
Pressure Tap Inlet Included, Pressure Tap Outlet Included
Heating Capacity - Maximum
415,000 BtuH
Includes Side Taps
Side Taps Not Included
ANSI Rating
ANSI Z223.1 NFPA No. 54
Operating Temperature - Minimum
-40 Degrees F
Pressure Tap Connection Type
NPT
Includes Pilot Generator Kit
Pilot Generator Kit Not Included
Port Connection Gender
Female
Includes Thermostat
Mechanical Thermostat Not Included
Includes Pressure Regulator
Pressure Regulator Included
Reducer Bushings Included
(2) 3/4 x 1/2 in, 1/2 x 3/8 in
Port Connection Type
NPT
Sensing Type
Flame Sensor
Voltage
24V AC
Valve Design
Single
For Media
Liquid Propane, Natural Gas
Electrical Connections
Quick Connect Terminal
Includes Conversion Kit
Conversion Kit Included
Operating Temperature - Maximum
175 Degrees F
Installation Orientation
Vertical
Manufacturer Series
VR8345

Description

Gas Valve, ANSI Rating ANSI Z223.1 NFPA No. 54, Current 0.7 A, Electrical Connections Quick Connect Terminal, Flow Direction Straight-Thru, For Media Liquid Propane, Natural Gas, Heating Capacity - Maximum 415,000 BtuH, Includes Conversion Kit Conversion Kit Included, Includes On/Off Switch Not Applicable, Includes Pilot Generator Kit Pilot Generator Kit Not Included, Includes Pressure Regulator Pressure Regulator Included
