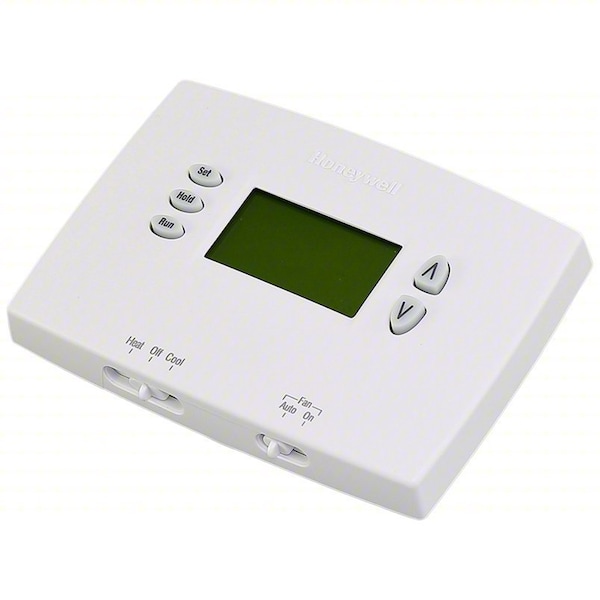

Honeywell Home Horizontal Programmable Thermostats, 2 Programs, 1 H, 1 C, Hardwired/Battery, 20/30VAC TH2110DH1002 - main

Horizontal Programmable Thermostats, 2 Programs, 1 H, 1 C, Hardwired/Battery, 20/30VAC

  • Mfr # TH2110DH1002

  • Zoro # G4287193

product price: $59.85
/ea

Key Features

Voltage
20/30VAC
Stages Heat
1
Mounting Type
Horizontal
Color
Premier White
Control Range
Cool 50 Degrees to 99 Degrees F, Heat 40 Degrees to 90 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TH2110DH1002
Zoro #
G4287193
UPC #
-
Country of Origin
Mexico

Dimensions

Height
3 7/16"
Width
1 3/16"
Depth
4 5/8 in
Screen Height
1 3/4 in
Digit Size
Easy Read
Overall Width
4 5/8 in
Overall Height
3 7/16 in
Overall Depth
1 3/16 in
Screen Width
1 3/4 in

Details

Item
Horizontal Programmable Thermostats
Voltage
20/30VAC
Stages Heat
1
Mounting Type
Horizontal
Color
Premier White
Control Range
Cool 50 Degrees to 99 Degrees F, Heat 40 Degrees to 90 Degrees F
System Switching
Heat-Cool-Off
Stages Cool
1
Dual Transformer Compatible
Yes
Power Method
Hardwired/Battery
750mV Compatible
Yes
Programs per Week
2
Footnotes
3, 4
Battery Backup
Yes
Fan Switching
Auto-on
Terminal Designations
R, RC, C, W, Y, G, O, B
Batteries Included
Yes
Temporary Temperature Hold
Yes
WiFi Capability
No
Low Battery Indicator
Yes
Temporary Program Override
Yes
Temp. Settings per Day
4
Mounting
Horizontal
Key Pad Lockout
No
Includes
Mounting Hardware
Humidification Control
No
Dehumidification Control
No
Display Type
Digital
Type
Programmable
Control Type
Push Button, Slide Switch
Stages
1H/1C Conventional, 1H/1C Heat Pump
Temperature Control Range
40 Degrees to 99 Degrees F
Contact Rating
20/30V AC
Maximum Operating Humidity
90 %
Backlit Screen
Yes
Number of Cooling Stages - Heat Pump System
1
Includes Batteries
Yes
Maximum Control Temperature
99 Degrees F
Temperature Differential
1 Degrees F
Temperature Scale
Fahrenheit/Celsius
Changeover Type
Manual
Operating Temperature Range
32 Degrees to 120 Degrees F
System/Fan Settings
Cool-Heat-Off/Auto-On
Electrical Connection Type
Hardwired
Sensor Location
Built-In
Mounting Direction
Horizontal
System Settings
Cool-Heat-Off
Wireless
No
Includes Positive Off
Yes
Maximum Operating Temperature
120 Degrees F
Fan Settings
Auto-On
Thermostat Type
Low Voltage
Number of Heating Stages - Conventional System
1
Application
Heat and Cool
Frequency
50 Hz, 60 Hz
Number of Heating Stages - Heat Pump System
1
Application/Stages
Heat and Cool; 1H/1C Conventional, 1H/1C Heat Pump
Mounting Direction/Shape
Horizontal
Shape
Rectangle
Programming Capability
5-2
Number of Zones
1
Operating Humidity Range
5% to 90% RH
Housing Color
White
Temperature Readout
Yes
Millivolt Compatible
Yes
Temperature settings per day
4
Compatible System Type
Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump without Aux, Hydronic Systems, Millivolt
Minimum Control Temperature
40 Degrees F
Number of Cooling Stages - Conventional System
1
Minimum Operating Humidity
5 %
Minimum Operating Temperature
32 Degrees F

Description

Low Voltage Thermostat, Stages Heat 1, Stages Cool 1, Temp. Settings per Day 4, Programs per Week 2, Terminal Designations B, C, G, O, R, RC, W, Y, WiFi Capability No, System Switching Heat-Cool-Off, Fan Switching Auto-On, Display Type Digital, Key Pad Lockout No, Humidification Control No, Dehumidification Control No, Temporary Program Override Yes, Temporary Temperature Hold Yes, Battery Backup Yes, Low Battery Indicator Yes, Batteries Included Yes, Dual Transformer Compatible Yes
