  11. Hydronic Programmable Thermostat, 7, 5-1-1 Programs, 1 H, None C, Hardwired/Battery, 24VAC

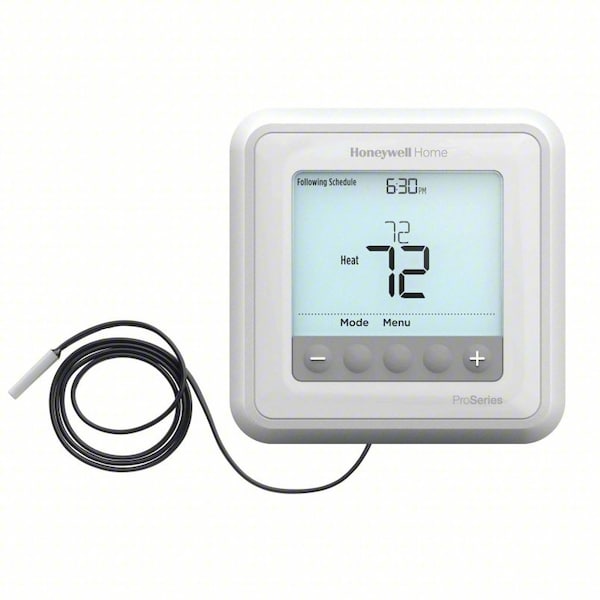

Honeywell Home Hydronic Programmable Thermostat, 7, 5-1-1 Programs, 1 H, None C, Hardwired/Battery, 24VAC TH6100AF2004/U - main

Hydronic Programmable Thermostat, 7, 5-1-1 Programs, 1 H, None C, Hardwired/Battery, 24VAC

  • Mfr # TH6100AF2004/U

  • Zoro # G7244848

product price: $158.54
/ea
Free Shipping & Returns

Key Features

Voltage
24VAC
Stages Heat
1
Mounting Type
UWP Mounting System
Color
White
Control Range
40 Degrees F to 90 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TH6100AF2004/U
Zoro #
G7244848
UPC #
-
Country of Origin
Mexico

Dimensions

Height
6"
Width
5"
Display Size
5-7/16 sq in
Depth
2 17/64 in
Digit Size
Easy Read
Overall Height
4 1/16 in
Overall Depth
1 1/8 in
Overall Width
4 1/16 in

Details

Item
Hydronic Programmable Thermostat
Voltage
24VAC
Stages Heat
1
Mounting Type
UWP Mounting System
Color
White
Control Range
40 Degrees F to 90 Degrees F
System Switching
Heat-Off
Stages Cool
None
Dual Transformer Compatible
No
Power Method
Hardwired/Battery
750mV Compatible
No
Programs per Week
7, 5-1-1
Display Color
Light Blue
Programmable Fan
No
Includes
(2) AA Batteries, Universal Mounting System, Slab Sensor, J Box Adapter, Decorative Cover Plate, Screws and Anchors
Fan Switching
Auto-On-Circulate
Humidification Control
No
Automatic Changeover
No
Key Pad Lockout
Yes
Terminal Designations
RC, R, C, W, S, S
Temp. Settings per Day
2
Display Type
LCD, Backlit
WiFi Capability
No
Features
T6 Pro Hydronic Series
Dehumidification Control
No
Temperature Limiting
Yes
Filter Indicator
No
Batteries Included
Yes
For Use With
In-Floor Heating System
Low Battery Indicator
Yes
Battery Backup
Yes
Temporary Program Override
Yes
Temporary Temperature Hold
Yes
Control Type
Push Button
Stages
1H Heat Pump
Differential Heat
1 Degrees F
Sensor Location
Remote
Mounting Direction
Horizontal
Application
Heat Only
Maximum Operating Temperature
120 Degrees F
Differential Type
Fixed
Operating Humidity Range
5% to 90% RH
Includes Positive Off
Yes
Application/Stages
Heat Only, 1H Heat Pump
Programming Capability
5-1-1, 5-2, 7-Day, Not Programmable
Thermostat Type
Low Voltage
Battery Type
(2) AA Batteries
System/Fan Settings
Heat-Off/No Fan Setting
Maximum Operating Humidity
90 %
Electrical Connection Type
Hardwired
Shape
Square
Temperature Sensitivity
+/-1 Degrees F
Fan Settings
No Fan Setting
Operating Temperature Range
32 Degrees to 120 Degrees F
Minimum Operating Humidity
5 %
Number of Heating Stages - Heat Pump System
1
System Settings
Heat-Off
Temperature Readout
Yes
Temperature Control Range
40 Degrees to 90 Degrees F
Backlit Screen
Yes
Millivolt Compatible
No
Housing Color
White
Wireless
No
Minimum Operating Temperature
32 Degrees F
Compatible System Type
Hydronic Systems
Minimum Control Temperature
40 Degrees F
Includes Batteries
Yes
Temperature Differential
1 Degrees F
Mounting Direction/Shape
Horizontal
Temperature Scale
Fahrenheit/Celsius
Maximum Control Temperature
90 Degrees F
Frequency
50 Hz, 60 Hz

Description

Low Voltage Thermostat, Application Heat Only, Heat-Off, C, R, Rc, S, W, White, For Use With In-Floor Heating System, Includes AQ12C20 Floor Sensor, Installation (J-box) Adaptor, UWP Mounting System
