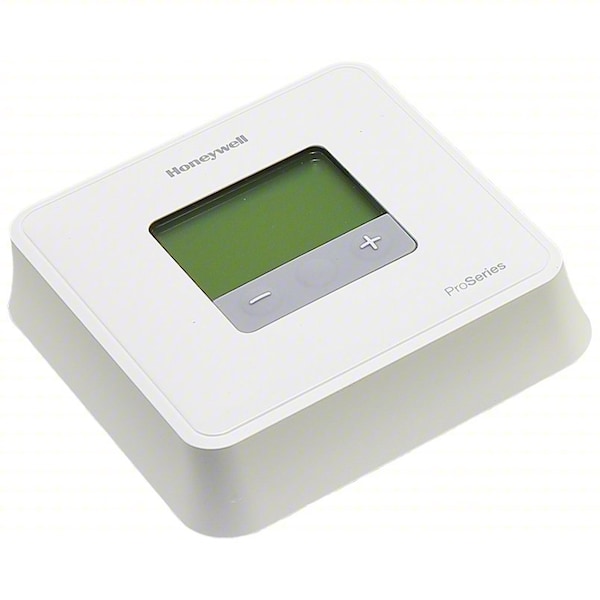

Honeywell Home Low Voltage Thermostat, 1 H, 1 C, Hardwired/Battery, 24VAC TH1110D2009 - main

Low Voltage Thermostat, 1 H, 1 C, Hardwired/Battery, 24VAC

  • Mfr # TH1110D2009

  • Zoro # G1937334

product price: $55.19
/ea

Key Features

Voltage
24VAC
Stages Heat
1
Color
White
Control Range
32 Degrees to 99 Degrees F
System Switching
Heat-Cool-Off
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TH1110D2009
Zoro #
G1937334
UPC #
-
Country of Origin
Mexico

Dimensions

Height
2 1/4"
Width
5 1/8"
Depth
6 1/8 in
Mounting Hole Diameter
3/16 in, 7/32 in
Overall Height
4 1/16 in
Overall Depth
1 7/16 in
Digit Size
Standard
Overall Width
4 1/16 in

Details

Item
Low Voltage Thermostat
Voltage
24VAC
Stages Heat
1
Color
White
Control Range
32 Degrees to 99 Degrees F
System Switching
Heat-Cool-Off
Stages Cool
1
Dual Transformer Compatible
Yes
Power Method
Hardwired/Battery
750mV Compatible
No
Filter Indicator
No
Temporary Temperature Hold
No
Display
LCD
Batteries Included
Yes
Includes
(2) AA Batteries, Screws and Wall Anchors
Key Pad Lockout
No
Humidification Control
No
Automatic Changeover
No
For Use With
Heating and Cooling
Programmable Fan
No
Occupancy Sensor
No
Temporary Program Override
No
Fan Switching
Auto-on
Temperature Limiting
No
Dehumidification Control
No
Terminal Designations
Y,G,C,W,R
Battery Backup
No
Low Battery Indicator
Yes
Display Type
Digital
Stages
1H/1C Conventional, 1H/1C Heat Pump
Control Type
Push Button
Mounting Direction/Shape
Horizontal
Number of Heating Stages - Heat Pump System
1
Frequency
50 Hz, 60 Hz
Temperature Scale
Fahrenheit/Celsius
System/Fan Settings
Cool-Heat-Off/Auto-On
Temperature Control Range
32 Degrees to 99 Degrees F
Battery Type
(2) AA Batteries
Shape
Square
Minimum Operating Humidity
5 %
Compatible System Type
Electric Forced Air Furnaces, Hydronic Systems, Gas Forced Air Furnaces, Millivolt
Millivolt Compatible
No
Number of Zones
1
Application
Heat or Cool
Includes Positive Off
Yes
Electrical Connection Type
Hardwired
Number of Cooling Stages - Conventional System
1
Backlit Type
Press Button
Thermostat Type
Low Voltage
Minimum Control Temperature
32 Degrees F
System Settings
Cool-Heat-Off
Contact Rating
20 V AC, 30 V AC
Mounting Direction
Horizontal
Programming Capability
Not Programmable
Temperature Differential
1 Degrees F
Maximum Operating Humidity
90 %
Housing Color
White
Operating Temperature Range
32 Degrees to 120 Degrees F
Operating Humidity Range
5% to 90%
Amperage
0.02 to 1.0 A
Maximum Control Temperature
99 Degrees F
Changeover Type
Manual
Number of Cooling Stages - Heat Pump System
1
Filter Change Reminder
No
Fan Settings
Auto-On
Number of Heating Stages - Conventional System
1
Maximum Operating Temperature
120 Degrees F
Temperature Sensitivity
+/-1 Degrees F
Minimum Operating Temperature
32 Degrees F

Description

Low Voltage Thermostat, Heat or Cool, Manual, Compatible System Type Electric Forced Air Furnaces, Hydronic Systems, Gas Forced Air Furnaces, Millivolt, Push Button, Dehumidification Control No, Digit Size Standard, Digital, Dual Transformer Compatible Yes, Fan Settings Auto-On, Humidification Control No, Includes Positive Off Yes, Minimum Control Temperature 32 Degrees F, Maximum Control Temperature 99 Degrees F, Key Pad Lockout No, Mounting Direction Horizontal
