  11. Low Voltage Thermostat, 2 H, 1 C, Hardwired/Battery, 20/30VAC

This item is Discontinued.

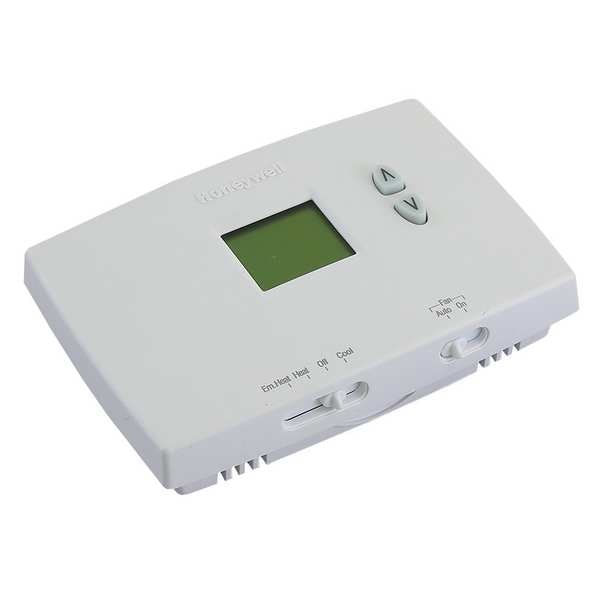

Honeywell Home Low Voltage Thermostat, 2 H, 1 C, Hardwired/Battery, 20/30VAC TH1210DH1001

Low Voltage Thermostat, 2 H, 1 C, Hardwired/Battery, 20/30VAC (Discontinued)

  • Mfr # TH1210DH1001
  • Zoro # G4776541
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TH1210DH1001
Zoro #
G4776541
UPC #
-
Country of Origin
Mexico

Dimensions

Height
3 7/16"
Width
1 3/16"
Depth
4 5/8 in
Overall Height
3 7/16 in
Overall Width
4 5/8 in
Digit Size
Standard
Overall Depth
1 3/16 in

Details

Item
Low Voltage Thermostat
Voltage
20/30VAC
Stages Heat
2
Color
White
Control Range
Cool 50 Degrees to 99 Degrees F, Heat 40 Degrees to 90 Degrees F
System Switching
Heat-Cool-Off-Emergency
Stages Cool
1
Dual Transformer Compatible
Yes
Power Method
Hardwired/Battery
750mV Compatible
Yes
Fan Switching
Auto-On
Terminal Designations
R,C,Y,AUX/E,G,O,B
Battery Backup
Yes
Display
Digital
Batteries Included
Yes
Low Battery Indicator
Yes
Humidification Control
Yes
Display Type
Digital
Control Type
Slide Switch
Housing Color
White
Application
Heat or Cool
Temporary Temperature Hold
Yes
Temperature Limiting
Yes
Key Pad Lockout
No
Mounting
Horizontal
Type
Non Programmable, Heat Pump
Dehumidification Control
No
Stages
2H/1C Conventional, 2H/1C Heat Pump
Mounting Direction
Horizontal
Changeover Type
Manual
Frequency
50 Hz, 60 Hz
Operating Humidity Range
5% to 90%
Millivolt Compatible
Yes
Number of Heating Stages - Heat Pump System
2
Mounting Direction/Shape
Horizontal
Maximum Operating Humidity
90 %
Shape
Rectangle
Maximum Operating Temperature
120 Degrees F
Contact Rating
20 V AC, 30 V AC
Temperature Control Range
40 Degrees to 99 Degrees F
Minimum Operating Humidity
5 %
Programming Capability
Not Programmable
Number of Cooling Stages - Conventional System
1
System/Fan Settings
Cool-Emergency Heat-Heat-Off/Auto-On
Fan Settings
Auto-On
Number of Heating Stages - Conventional System
2
Number of Cooling Stages - Heat Pump System
1
Electrical Connection Type
Hardwired
Maximum Control Temperature
99 Degrees F
Thermostat Type
Low Voltage
Number of Zones
1
System Settings
Cool-Emergency Heat-Heat-Off
Temperature Differential
1 Degrees F
Temperature Scale
Fahrenheit/Celsius
Minimum Operating Temperature
32 Degrees F
Includes Positive Off
Yes
Operating Temperature Range
32 Degrees to 120 Degrees F
Minimum Control Temperature
40 Degrees F
Compatible System Type
Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump with Aux, Hydronic Systems

Description

Low Voltage Thermostat, Heat or Cool, Manual, Compatible System Type Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump with Aux, Hydronic Systems, Slide Switch, Dehumidification Control No, Digit Size Standard, Digital, Dual Transformer Compatible Yes, Fan Settings Auto-On, Humidification Control Yes, Includes Positive Off Yes, Minimum Control Temperature 40 Degrees F, Maximum Control Temperature 99 Degrees F, Key Features Heat Only with Fan, Key Pad Lockout No

Restrictions

This item has been restricted from sale in the following states: CO
