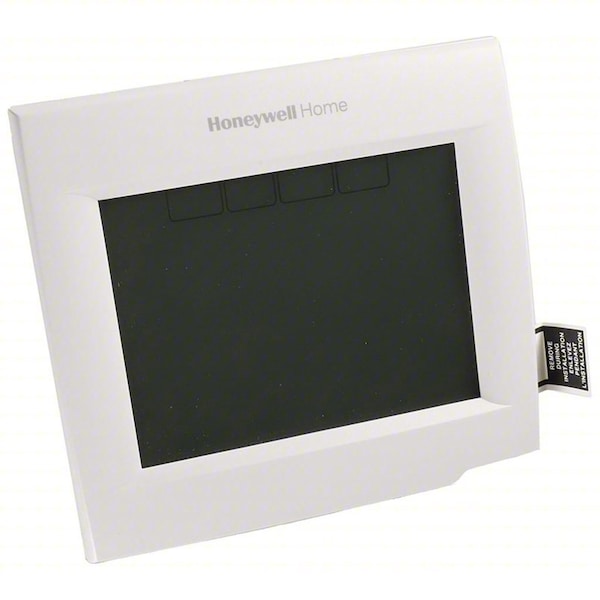

Programmable Thermostat, 7 or Nonprogrammable Programs, 3 H, 2 C, Hardwired/Battery, 18/30VAC

  • Mfr # TH8321R1001
  • Zoro # G8602133
product price:
$
301.99
/ea
Free Shipping & Returns

Key Features

Voltage
18 to 30V AC
Stages Heat
3
Mounting Type
Horizontal
Color
Arctic White
Control Range
Cool 50 Degrees to 99 Degrees F, Heat 40 Degrees to 90 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TH8321R1001
Zoro #
G8602133
UPC #
-
Country of Origin
Mexico

Dimensions

Height
4 5/8"
Width
4 15/16 in
Display Size
10 sq in
Depth
1 1/8 in
Digit Size
Standard
Screen Height
10 in
Overall Height
4 5/8 in
Overall Width
4 15/16 in
Overall Depth
1 1/8 in
Screen Width
10 in
Fits Chest Size
Smart Schedule, Patented Interview Based Programming and Installer Setup, RedLINK(TM) Wireless Communication, Meets Commercial Code and is Title 24 Compliant, Alerts and User Interactions Log, Customizable Service Reminders, MicroSD Port, Dual Powered - Battery or Hardwired (C Wire), Precise temperature control ( +/-1 Degrees F), Multiple Staging Options

Details

Item
Programmable Thermostat
Voltage
18 to 30V AC
Stages Heat
3
Mounting Type
Horizontal
Color
Arctic White
Control Range
Cool 50 Degrees to 99 Degrees F, Heat 40 Degrees to 90 Degrees F
System Switching
Auto-Heat-Cool-Off-Emergency
Stages Cool
2
Dual Transformer Compatible
Yes
Power Method
Hardwired/Battery
750mV Compatible
Yes
Programs per Week
7 or Nonprogrammable
Display Color
Blue
WiFi Capability
No
Includes
Portable Comfort Control, RedLINK Internet Gateway, Truesteam Humidifier With Wireless Adapter And Truezone Zoning Panel With Wireless Adapter, Wireless Entry/Exit Remote, Wireless Indoor Sensor, Wireless Outdoor Sensor, Wireless Vent and Filter
Humidification Control
Yes
Temporary Program Override
Yes
Display Type
Digital
Dehumidification Control
Yes
Terminal Designations
A-L/A, C, G, K, R, RC, S1 S1, U1 U1, W-O/B, W2-AUX/E, Y, Y2
Automatic Changeover
Yes
Features
Smart Schedule, Patented Interview Based Programming and Installer Setup, RedLINK(TM) Wireless Communication, Meets Commercial Code and is Title 24 Compliant, Alerts and User Interactions Log, Customizable Service Reminders, MicroSD Port, Dual Powered - Battery or Hardwired (C Wire), Precise temperature control ( +/-1 Degrees F), Multiple Staging Options
Temp. Settings per Day
4
Batteries Included
Yes
Key Pad Lockout
Yes
Battery Backup
Yes
Temporary Temperature Hold
Yes
Programmable Fan
No
Filter Indicator
Yes
Low Battery Indicator
Yes
Remote Sensing Capability
Yes
Fan Switching
Auto-On-Circulate-Follow Schedule
Green Certification or Other Recognition
ENERGY STAR(R) Certified
Temperature Limiting
Yes
Standards
Energy Star
Stages
2H/2C Conventional, 3H/2C Heat Pump
Occupancy Sensor
Compatible with Occupancy Sensor
Control Type
Touch Screen
Contact Rating
18/30V AC
Number of Heating Stages - Heat Pump System
3
Application/Stages
Heat and Cool; 2H/2C Conventional, 3H/2C Heat Pump
Frequency
50 Hz, 60 Hz
Wireless System Compatibility
RedLink
Number of Cooling Stages - Heat Pump System
2
System/Fan Settings
Auto-Cool-Emergency Heat-Heat-Off/Auto-Circulate-Follow Schedule-On
Thermostat Type
Low Voltage
Temperature Readout
Yes
Maximum Control Temperature
99 Degrees F
Temperature Control Range
40 Degrees to 99 Degrees F
Application
Heat and Cool
Minimum Operating Humidity
5 %
Temperature Scale
Fahrenheit/Celsius
Number of Heating Stages - Conventional System
2
Maximum Operating Humidity
90 %
Includes Batteries
Yes
Sensor Location
Remote
Changeover Type
Automatic
Differential Type
Adjustable
Mounting Direction/Shape
Horizontal
Minimum Operating Temperature
32 Degrees F
Maximum Operating Temperature
120 Degrees F
Operating Humidity Range
5% to 90% RH
Mounting Direction
Horizontal
Operating Temperature Range
32 Degrees to 120 Degrees F
Temperature settings per day
4
Compatible System Type
Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump with Aux, Heat Pump without Aux, Hydronic Systems, Millivolt
Number of Cooling Stages - Conventional System
2
Temperature Sensitivity
+/-1.5 Degrees F
Minimum Control Temperature
40 Degrees F
Number of Zones
1
Filter Change Reminder
Yes
Includes Positive Off
Yes
Programming Capability
7 Day
Shape
Rectangle
System Settings
Auto-Cool-Emergency Heat-Heat-Off
Housing Color
White
Electrical Connection Type
Hardwired
Millivolt Compatible
Yes
Temperature Differential
1 Degrees F
Fan Settings
Auto-Circulate-On

Description

Low Voltage Thermostat, Stages Heat 3, Stages Cool 2, Temp. Settings per Day 4, Programs per Week 7 or Nonprogrammable, Terminal Designations A-L/A, C, G, K, R, RC, S1 S1, U1 U1, W-O/B, W2-AUX/E, Y, Y2, WiFi Capability No, System Switching Heat-Off-Cool-Auto-Emergency Heat, Fan Switching Auto-On-Circulate-Follow Schedule, Display Size 10 sq in, Display Type Digital, Display Color Blue, Key Pad Lockout Yes, Programmable Fan No, Automatic Changeover Yes, Humidification Control Yes
