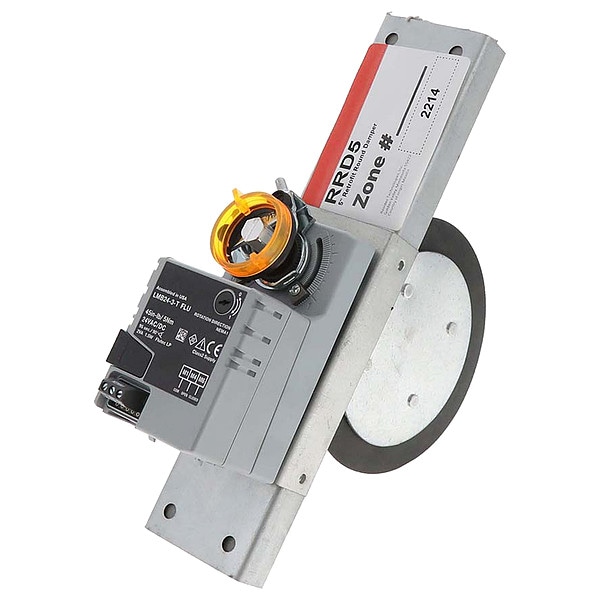

Round Motorized Damper, Retrofit, Dia 5 In

Mfr # RRD5
Zoro # G2989682

188.99

Free Shipping & Returns

Key Features

Includes

(12) Mounting Screws; (4) 1-1/2 in Self-Drilling Hex Washer Head Screws; Adhesive Backed Cutout Template

Blade Material

Galvanized Steel

Connection

3 Wires

For Use With

4XA22, 4XA24, 4XA26

Torque (In.-Lbs.)

35 in-lb

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: RRD5
Zoro #: G2989682
UPC #: -
Country of Origin: Mexico

Dimensions

Width (In.): 10 3/4 in
Depth (In.): 7 3/8 in
Dia. (In.): 5 in
Height (In.): 2 5/8 in
For Nominal Duct Diameter: 5 in
Overall Diameter: 5 in
Rough Opening Diameter: 5 in
Blade Material Thickness: 20 ga
Overall Height: 3 1/8 in
Rough Opening Length: 5 in
Overall Width: 2 5/8 in
Rough Opening Width: 5 in
Overall Length: 10 3/4 in
Wire Rope Length: 10 3/4 in
Length: 10 3/4 in

Details

Item: Round Motorized Damper
Includes: (12) Mounting Screws; (4) 1-1/2 in Self-Drilling Hex Washer Head Screws; Adhesive Backed Cutout Template
Blade Material: Galvanized Steel
Connection: 3 Wires
For Use With: 4XA22, 4XA24, 4XA26
Torque (In.-Lbs.): 35 in-lb
Requires: Zone Control Panel
Terminal Designations: M1, M4, M6
Output Amps: 2.5 VA
Rotation Angle (Deg.): 90 Degrees
Timing (Sec.): 90 sec
Application: Heating And Cooling Systems
Voltage (AC): 24
Ambient Temp. Range: 42 Degrees to 122 Degrees F
Type: Retrofit Zoning
Frame Material: Steel
Electrical Connection: Hardwired
Damper Application: Motorized
Full Load Current: 2.5 A
Frequency: 50/60 Hz
Nameplate Voltage: 24V DC
Includes Motor: Yes
Rough Opening Shape: Round
Damper Type: Dynamic
For Duct Shape: Round
Minimum Ambient Temperature: -40 Degrees F
Standards: UL Listed

Description

Round Motorized Damper, For Nominal Duct Diameter 5 in, Damper Application Motorized, Number of Panels Not Applicable, Overall Height 3 1/8 in, Overall Length 10 3/4 in, Rough Opening Shape Round, For Duct Shape Round, Overall Width 2 5/8 in, Frame Material Thickness Not Applicable, Blade Material Galvanized Steel, Maximum Air Pressure Not Applicable, Overall Diameter 5 in, Rough Opening Length 5 in, Rough Opening Width 5 in, Damper Type Dynamic, Maximum Air Velocity Not Applicable
