  6. Thermostat, 1 H, 1 C, Wall or Outlet Box Mount, Hardwired, 20/30VAC

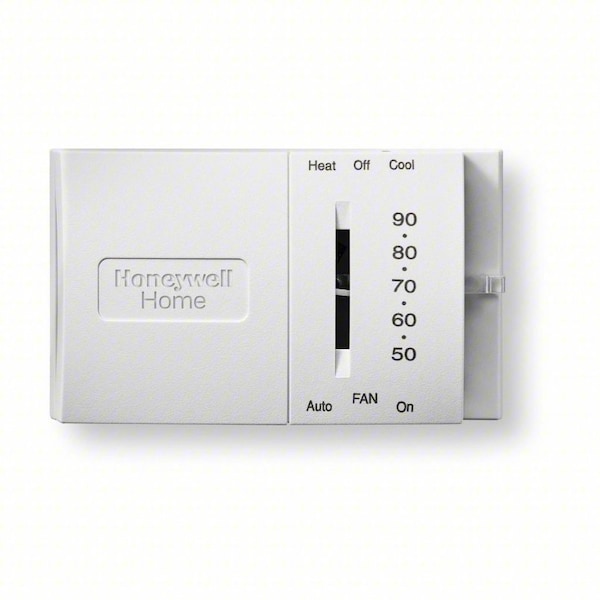

Honeywell Home Thermostat, 1 H, 1 C, Wall or Outlet Box Mount, Hardwired, 20/30VAC T8034N1007 - main

Thermostat, 1 H, 1 C, Wall or Outlet Box Mount, Hardwired, 20/30VAC

  • Mfr # T8034N1007

  • Zoro # G0707174

product price:  $49.95
/ea

Key Features

Voltage
20/30VAC
Stages Heat
1
Mounting Type
Horizontal
Mounting Location
Wall or Outlet Box
Color
Premier White
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
T8034N1007
Zoro #
G0707174
UPC #
-
Country of Origin
Mexico

Dimensions

Height
2 27/32"
Width
4 23/32"
Depth
1 1/2 in
Overall Height
2 7/8 in
Overall Width
4 3/4 in
Digit Size
Standard
Overall Depth
1 3/8 in

Details

Item
Thermostat
Voltage
20/30VAC
Stages Heat
1
Mounting Type
Horizontal
Mounting Location
Wall or Outlet Box
Color
Premier White
Control Range
45 Degrees to 95 Degrees F
System Switching
Heat-Cool-Off
Stages Cool
1
Dual Transformer Compatible
Yes
Power Method
Hardwired
750mV Compatible
No
Terminal Designations
B, G, O, R, RC, W, Y
Fan Switching
Auto-On
Automatic Changeover
No
Mounting
Horizontal
Features
Mercury Free
For Use With
Gas, Oil, Forced Warm Air, Hot Water, Steam or Gravity
Dehumidification Control
No
Temporary Program Override
No
Temporary Temperature Hold
No
Temperature Limiting
No
Battery Backup
No
Display Type
Analog
Includes
Dealer Logo Pocket
Humidification Control
No
Stages
1H/1C Conventional, 1H/1C Heat Pump
Control Type
Slide Switch
Type
Mechanical Nonprogrammable Conventional Systems or HP
Application
Heat and Cool
Includes Positive Off
Yes
Compatible System Type
Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump without Aux, Hydronic Systems
Maximum Operating Humidity
90 %
Millivolt Compatible
No
System Settings
Cool-Heat-Off
Shape
Rectangle
Thermostat Type
Mechanical
Mounting Direction/Shape
Horizontal
Number of Cooling Stages - Conventional System
1
Mercury Free
Yes
Frequency
50 Hz, 60 Hz
Temperature Control Range
45 Degrees to 95 Degrees F
Changeover Type
Manual
System/Fan Settings
Heat-Off-Cool/Auto-On
Minimum Control Temperature
50 Degrees F
Electrical Connection Type
Hardwired
Minimum Operating Temperature
0 Degrees F
Mounting Direction
Horizontal
Maximum Control Temperature
90 Degrees F
Temperature Sensitivity
+/-2 Degrees F
Operating Temperature Range
0 Degrees to 120 Degrees F
Operating Humidity Range
5% to 90%
Minimum Operating Humidity
5 %
Temperature Scale
Fahrenheit
Fan Settings
Auto-On
Number of Cooling Stages - Heat Pump System
1
Housing Color
White
Maximum Operating Temperature
120 Degrees F
Temperature Readout
Yes
Number of Heating Stages - Conventional System
1
Number of Heating Stages - Heat Pump System
1

Description

Low Voltage Thermostat, Terminal Designations B, G, O, R, RC, W, Y, System Switching Heat-Cool-Off, Fan Switching Auto-On, Automatic Changeover No, Dual Transformer Compatible Yes, Power Method Hardwired, Voltage 20 to 30V AC, 750mV Compatible No, Mounting Horizontal, Height 2 27/32 in, Width 4 23/32 in, Depth 1 1/2 in, Color White, Control Range 50 Degrees to 90 Degrees F, Features Mercury Free, For Use With Gas, Oil, Forced Warm Air, Hot Water, Steam or Gravity, Includes Dealer Logo Pocket

Restrictions

This item has been restricted from sale in the following states: CO
