  11. Thermostat, 1 H, Battery Assisted Power Stealing, 20/30VAC

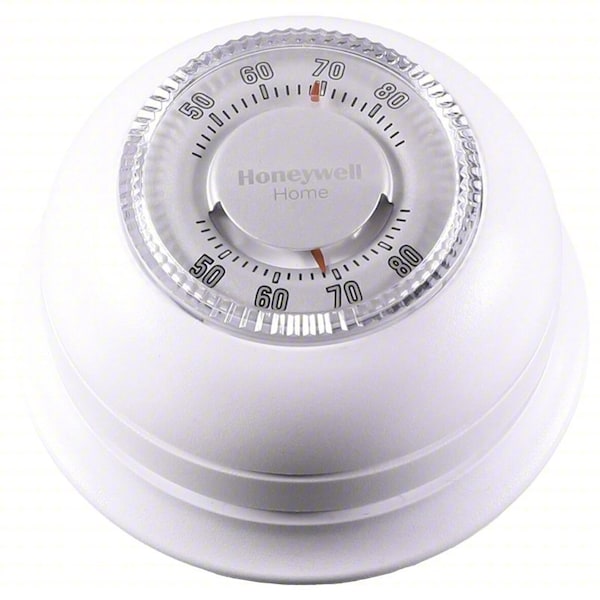

Honeywell Home Thermostat, 1 H, Battery Assisted Power Stealing, 20/30VAC T87K1007 - main

Thermostat, 1 H, Battery Assisted Power Stealing, 20/30VAC

  • Mfr # T87K1007

  • Zoro # G0812034

product price: $60.25
/ea

Key Features

Voltage
20/30VAC
Stages Heat
1
Mounting Type
Round
Color
Premier White
Control Range
40 Degrees to 90 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
T87K1007
Zoro #
G0812034
UPC #
-
Country of Origin
Mexico

Dimensions

Height
1-3/4"
Width
3-11/16"
Depth
1 3/4 in
Diameter
3 11/16 in
Digit Size
Standard
Overall Depth
1 3/4 in
Overall Width
4 13/16 in

Details

Item
Thermostat
Voltage
20/30VAC
Stages Heat
1
Mounting Type
Round
Color
Premier White
Control Range
40 Degrees to 90 Degrees F
System Switching
No
Dual Transformer Compatible
No
Power Method
Battery Assisted Power Stealing
750mV Compatible
No
Features
Mercury Free
Fan Switching
No
Automatic Changeover
No
Terminal Designations
R, W, Y
For Use With
Gas, Oil, Forced Warm Air, Hot Water, Steam or Gravity
Mounting
Vertical
Key Pad Lockout
No
Temperature Limiting
No
Temporary Program Override
No
Battery Backup
No
Temporary Temperature Hold
No
Display Type
Analog
Dehumidification Control
No
Humidification Control
No
Type
Mechanical Nonprogrammable Conventional Systems
Control Type
Exposed Dial
Stages
1H Conventional
Number of Heating Stages - Heat Pump System
0
Maximum Control Temperature
90 Degrees F
Compatible System Type
Electric Forced Air Furnaces, Gas Forced Air Furnaces
Minimum Control Temperature
40 Degrees F
Temperature Sensitivity
+/-2 Degrees F
Maximum Operating Humidity
90 %
Thermostat Type
Low Voltage
Mercury Free
Yes
Number of Cooling Stages - Conventional System
0
Application
Heat Only
System/Fan Settings
On/No Fan Setting
Number of Cooling Stages - Heat Pump System
0
Mounting Direction
Vertical
Number of Heating Stages - Conventional System
1
Fan Settings
No Fan Setting
Housing Color
White
Temperature Readout
Yes
Shape
Round
System Settings
On
Temperature Control Range
40 Degrees to 90 Degrees F
Minimum Operating Humidity
5 %
Millivolt Compatible
No
Electrical Connection Type
Hardwired
Mounting Direction/Shape
Round
Operating Humidity Range
5% to 90%
Temperature Scale
Fahrenheit
Frequency
50 Hz, 60 Hz
Includes Positive Off
No

Description

Low Voltage Thermostat, Terminal Designations R, W, Y, System Switching No, Fan Switching No, Automatic Changeover No, Dual Transformer Compatible No, Power Method Hardwired, Voltage 20 to 30V AC, 750mV Compatible No, Mounting Vertical, Depth 1 3/4 in, Diameter 3 11/16 in, Color White, Control Range 40 Degrees to 90 Degrees F, Features Mercury Free, For Use With Gas, Oil, Forced Warm Air, Hot Water, Steam or Gravity

Restrictions

Hazardous material
This item has been restricted from sale in the following states: CO
