  9. Triple Aquastat, Burner Control, 130F-240F

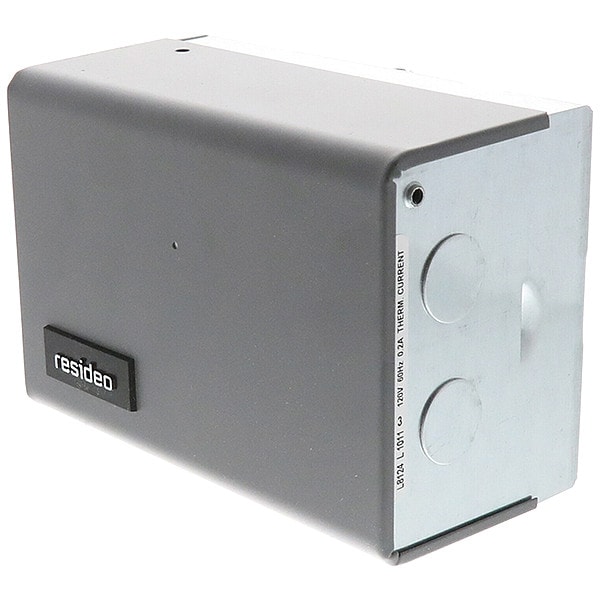

Honeywell Home Triple Aquastat, Burner Control, 130F-240F L8124L1011 - main

Triple Aquastat, Burner Control, 130F-240F

  • Mfr # L8124L1011

  • Zoro # G1947206

product price: $440.99
/ea
Free Shipping & Returns

Key Features

Temp. Range
High Limit 130 Degrees to 240 Degrees F, Low Limit 110 Degrees to 220 Degrees F
Differential
High Limit 10 Degrees F Fixed, Low Limit 10 Degrees to 25 Degrees F Adj.
Application
High Limit
Mounting
Horizontal
Burner Control Circuit @ 120V (A)
7.4 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
L8124L1011
Zoro #
G1947206
UPC #
-
Country of Origin
United States

Dimensions

Depth (In.)
3 1/8 in
Width (In.)
4 1/3 in
Height (In.)
6 1/8 in
Overall Width
6 1/8 in
Overall Height
4 3/8 in
Capillary Tube Length
3 3/8 in
Overall Depth
3 1/8 in

Details

Item
Immersion Controller
Temp. Range
High Limit 130 Degrees to 240 Degrees F, Low Limit 110 Degrees to 220 Degrees F
Differential
High Limit 10 Degrees F Fixed, Low Limit 10 Degrees to 25 Degrees F Adj.
Application
High Limit
Mounting
Horizontal
Burner Control Circuit @ 120V (A)
7.4 A
Humidity Range (% RH)
Non-Condensing 0 To 95
Includes
Diaphragm Powerhead, Extra Terminals, Micro Switch Assembly, Range Stops, Transformer, Heat-Conductive Compound
Full Load Amps @ 120VAC
7.4 A
System Switching
SPST
Type
Triple Aquastat Relay with High Limit
Locked Rotor Amps @ 240V
22.7 A
Locked Rotor Amps @ 120V
44.4 A
Full Load Amps @ 240VAC
3.7 A
Agency Compliance
UL & CSA
Requires
Tube of Heat Conductive Compound and Range Stops
Burner Control Circuit
120V
Product Type
Immersion Controller
Mounting Orientation
Horizontal
Auto/Manual Switch Included
Yes
Standards
CSA Certified, UL Listed
Reset Type
Automatic Reset
Number of Switches
5
Multizone Control Compatible
Yes
Full Load Current @ 240V AC
3.7 A
Number of Zone Control Valves Supported
1
Differential Temperature
10 Degrees F Fixed (High Limit), 10 Degrees F to 25 Degrees F Adjustable (Low Limit)
Contact Form
SPST
Burner Circuit Voltage Type
Line Voltage, Low Voltage
Input Voltage
120V AC, 24V AC
Full Load Current @ 120V AC
7.4 A
Locked Rotor Current @ 240V
22.2 A
Locked Rotor Current @ 120V
44.4 A
Minimum Control Temperature
130 Degrees F
Number of Zone Control Relays Supported
1
Maximum Control Temperature
240 Degrees F

Description

Immersion Controller, Application High Limit, Maximum Control Temperature 240 Degrees F, Minimum Control Temperature 130 Degrees F, Differential Temperature 10 Degrees F Fixed (High Limit), 10 Degrees F to 25 Degrees F Adjustable (Low Limit), Mounting Orientation Horizontal, Number of Switches 5, Burner Circuit Voltage Type Line Voltage, Low Voltage, Capillary Tube Length 3 3/8 in, Spud Size Not Applicable, Contact Form SPST, Multizone Control Compatible Yes, Product Type Immersion Controller
