Shop HONEYWELL HOME

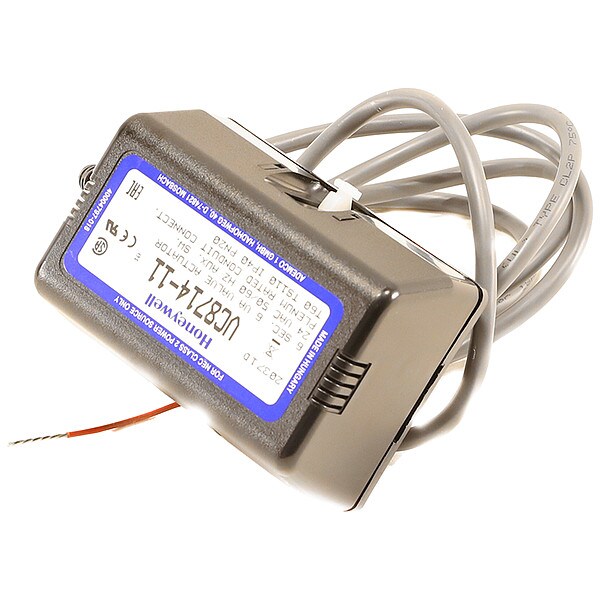

Two Position Low V Actuator w/End Switch

  • Mfr # VC8714ZZ11

  • Zoro # G2239002

product price:
$
90.29
/ea

Key Features

Type
Two Position Low Voltage With End Switch
Input Voltage
24V AC
For Use With
VC Series Valves, and a SPST Controller
Includes
Manual
Electrical Connections
Plenum Rated Wire Conduit
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VC8714ZZ11
Zoro #
G2239002
UPC #
-
Country of Origin
Hungary

Dimensions

Depth (In.)
2 11/16 in
Width (In.)
3 23/32 in
Height (In.)
2 3/4 in
Overall Height
2 3/4 in
Overall Width
3 3/4 in
Overall Depth
2 3/4 in
Electrical Lead Length
5 m
Stroke Length
Not Rated

Details

Item
Electric Zone Valve Actuator
Type
Two Position Low Voltage With End Switch
Input Voltage
24V AC
For Use With
VC Series Valves, and a SPST Controller
Includes
Manual
Electrical Connections
Plenum Rated Wire Conduit
Hz
60
Frequency
60 Hz
Compatible with Series
VC
Product Type
Electric Zone Valve Actuator
Electrical Connection
Plug-In
Contact Form
SPDT
Rated Torque
40 in-lb
Power Consumption
6 VA
Signal Type
Floating Point
NEMA Rating
Not Rated
Time to Close
6 sec
IP Rating
IP40
Electrical Connection Type
Cable
Valve Application
Damper and Valve
Number of Auxiliary Switches
1
Stroke Degree
45 Degrees
Maximum Operating Temperature
150 Degrees F
For Use With Building Automation Systems
Building Automation System Compatible
Spring Return
Non-Spring Return
Voltage
24V AC
Return Action
Non-Spring Return
Control Signal
Floating Point
Operating Temperature - Maximum
150 Degrees F
Compatible Series
VC
Torque
Not Rated
Cycle Time
6 sec
Auxiliary Contact Form
SPDT

Description

Electric Zone Valve Actuator, Auxiliary Contact Form SPDT, Compatible Series VC, Control Signal Floating Point, Cycle Time 6 sec, Electrical Connection Type Cable, Electrical Lead Length 5 m, Frequency 60 Hz, Includes Manual, NEMA Rating Not Rated, Number of Auxiliary Switches 1, Operating Temperature - Maximum 150 Degrees F, Overall Depth 2 3/4 in, Overall Height 2 3/4 in, Overall Width 3 3/4 in, Power Consumption 6 VA, Product Type Electric Zone Valve Actuator
