  6. Industrial Snap Action Switch, Hinge, Lever Actuator, SPDT, 15A @ 120V AC Contact Rating

This item is Discontinued.

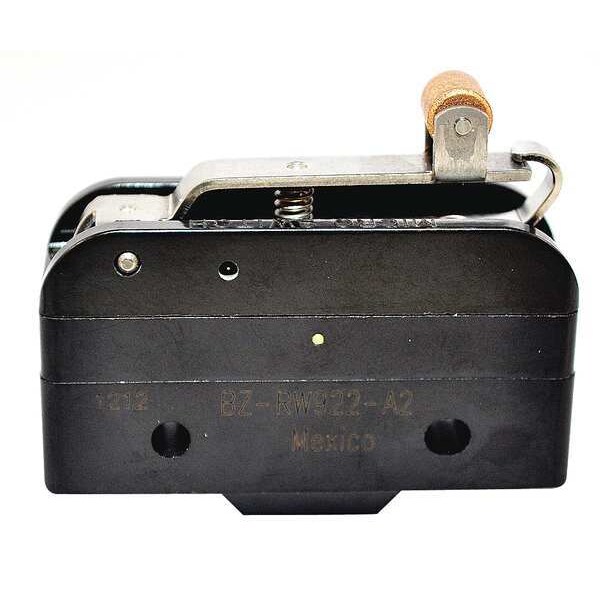

Honeywell Industrial Snap Action Switch, Hinge, Lever Actuator, SPDT, 15A @ 120V AC Contact Rating BZ-RW922-A2

Industrial Snap Action Switch, Hinge, Lever Actuator, SPDT, 15A @ 120V AC Contact Rating (Discontinued)

  • Mfr # BZ-RW922-A2
  • Zoro # G4710106
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
BZ-RW922-A2
Zoro #
G4710106
UPC #
-
Country of Origin
Mexico

Dimensions

Lever Actuator Length - Snap Action Switch
1.25 in
Height - Snap Action Switch
1 in
Width - Snap Action Switch
2 in
Depth - Snap Action Switch
0.7 in
Actuator Length
1.25"
Length
2.0"
Height
1.0"
Mounting Dimension - Snap Action Switch
1.00 in Centers
Mounting Dimension
1.00" Centers
Depth
0.7"
Overall Depth
0.7 in
Overall Height
1 in
Overall Width
2 in
Lever Actuator Length
1.25 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Hinge, Lever
AC Contact Rating - Snap Action Switch
15 A @ 120 V
Contact Form- Switches
SPDT
Operating Temp. Range
-67 Degrees to 185 Degrees F
Type of Actuator
Straight Lever
Current Rating
15a
Release Force
4 oz
Terminal Type
Screw
Watertight - Snap Action Switch
No
Operating Force
12 oz
Series
BZ
Standards
CSA, UL Listed
Max. Pretravel
0.015 in
Differential Travel
0.0005 to 0.0010 in
Housing Material
General Purpose Phenolic
Voltage Rating
125VAC
Contact Form
SPDT
Over Travel
0.1 in
Electrical Connection - Snap Action Switch
Screw
AC Contact Rating
15 A @ 120 V
Body Material
Phenolic
Differential Travel - Minimum
0.015 in
Differential Travel - Maximum
0.025 in
Electrical Connection
Screw
Actuator Style
Hinge Lever

Description

Snap Action Switch, Hinge, Lever, AC Contact Rating - Snap Action Switch 15 A @ 120 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 1.25 in, Height - Snap Action Switch 1 in, Width - Snap Action Switch 2 in, Depth - Snap Action Switch 0.7 in, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series BZ
