This item is Discontinued.

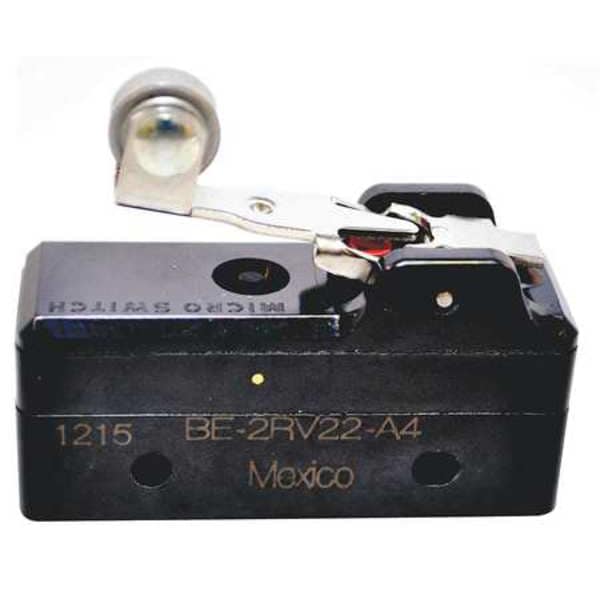

Honeywell Industrial Snap Action Switch, Lever, Roller, Short Actuator, SPDT, 25A @ 480V AC Contact Rating BE-2RV22-A4

Industrial Snap Action Switch, Lever, Roller, Short Actuator, SPDT, 25A @ 480V AC Contact Rating (Discontinued)

  • Mfr # BE-2RV22-A4
  • Zoro # G4537933
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
BE-2RV22-A4
Zoro #
G4537933
UPC #
-
Country of Origin
Mexico

Dimensions

Lever Actuator Length - Snap Action Switch
1.05 in
Height - Snap Action Switch
1 in
Width - Snap Action Switch
2 in
Depth - Snap Action Switch
0.7 in
Depth
0.7"
Mounting Dimension - Snap Action Switch
1.00 in Centers
Length
2.0"
Mounting Dimension
1.00" Centers
Actuator Length
1.05"
Height
1.0"
Overall Depth
0.7 in
Overall Height
1 in
Overall Width
2 in
Lever Actuator Length
1.05 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Lever, Roller, Short
AC Contact Rating - Snap Action Switch
25 A @ 480 V
DC Contact Rating - Snap Action Switch
25 A @ 250 V
Contact Form- Switches
SPDT
Differential Travel
0.045 in
Standards
CSA LR41370, UL E12252
Current Rating
25A
Contact Form
SPDT
Housing Material
General Purpose Phenolic
Release Force
1.5 oz
Terminal Type
Screw
Watertight - Snap Action Switch
No
Series
BE
Operating Temp. Range
-67 Degrees to 185 Degrees F
Electrical Connection - Snap Action Switch
Screw
Voltage Rating
250VAC
Type of Actuator
Short Roller Lever
Max. Pretravel
0.25 in
Over Travel
0.03 in
Operating Force
14.0 to 22.0 oz
AC Contact Rating
25 A @ 480 V
DC Contact Rating
25 A @ 250 V
Electrical Connection
Screw
Actuator Style
Roller Lever
Differential Travel - Maximum
0.045 in
Body Material
Phenolic

Description

Snap Action Switch, Lever, Roller, Short, AC Contact Rating - Snap Action Switch 25 A @ 480 V, DC Contact Rating - Snap Action Switch 25 A @ 250 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 1.05 in, Height - Snap Action Switch 1 in, Width - Snap Action Switch 2 in, Depth - Snap Action Switch 0.7 in, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series BE
