Air Pressure Switch - Adjustable, 1.5–150 mbar, UL/CE/FM

The HONEYWELL KROMSCHRODER SW,PRESS,AIR,DL 10KG 3W is an A/C pressure switch rated for use in applications involving air and flue gas pressure measurement. It compatible with positive, negative, and differential pressure measurement within specified ranges. The switching point features an adjustable setting dial to accommodate various operational requirements.

Key features include:

• Pressure range: -1.5 to 150 mbar (0.12 to 20"WC)
• Adjustable switching point with setting dial
• Pneumatic connections: Tube connections; CE versions offer Rp 1/4 and Rp 1/8; UL versions provide 1/4" NPT and 1/8" NPT
• Contact options: Silver contacts (24–250V AC, 0.05–5A) or gold contacts (5–250V AC, 0.01–5A) for CE version; silver contacts (30–240V AC, 5A) or gold contacts (max 30V AC, 0.05A) for UL version

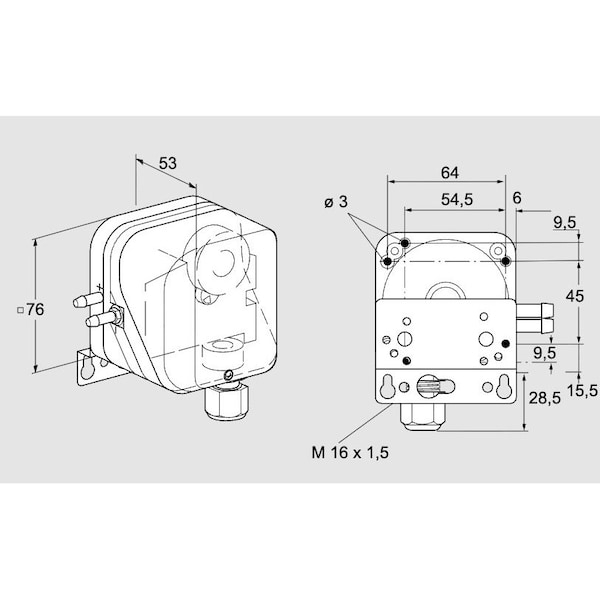

• Electrical connection via screw terminals with M16x1.5 cable gland or optional screw terminals with a 1/2" NPT conduit
• Certified by EU, UL listed, FM approved, AGA approved
• Silicon-free construction
