Gas Pressure Regulator & Solenoid Valve, 1/2" DN15, 24V DC, IP65

The HONEYWELL KROMSCHRODER VAG1-/15R/NWBE is a gas valve rated for use in gas pressure regulation and control applications within specified parameters. This unit integrates both a Class A pressure regulator (EN 88) and a Class A solenoid valve (EN 161), suitable for use with gas, air, and biologically produced methane. It features rapid actuation as specified by manufacturer’s operational guidelines, an integrated pilot lamp, and is housed in an IP65-rated enclosure.

Key features include:

• Maximum inlet pressure: 500 mbar (7 psig)
• Outlet connection: DN 15 (1/2") Rp internal thread
• Outlet pressure range: 35–100 mbar
• Mains voltage: 24 V DC; electrical connection via M20 cable gland on right side of connection box
• FM and SA approved; EU certified

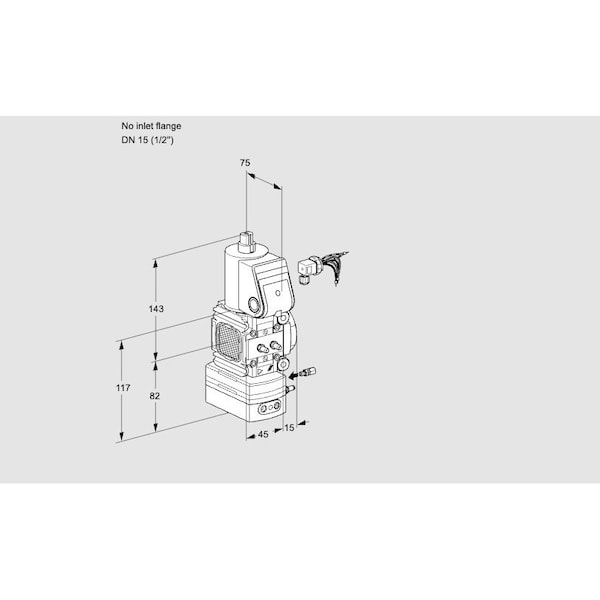

• No inlet flange; size 1 configuration
• Valve seat reduced; accessories include right-side pressure switch (30–110 mbar) with test point at outlet pressure, left-side screw plugs
