Gas Pressure Regulator & Solenoid Valve, 1/2" DN15, 24V DC, IP65

The HONEYWELL KROMSCHRODER VAG115R/NWBE is a gas valve rated for use in gas pressure regulation and control applications. This unit integrates both a Class A pressure regulator (EN 88) and a Class A solenoid valve (EN 161), compatible with gas, air, and biologically produced methane within specified parameters. The device includes rapid actuation mechanism as per manufacturer specifications, an integrated pilot lamp, and is constructed to meet IP65 ingress protection standards.

Key features include:

• Maximum inlet pressure: 500 mbar (7 psig)

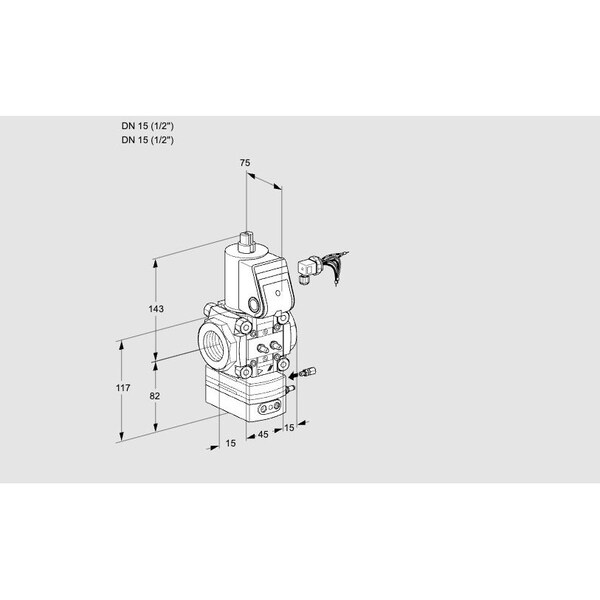

• Outlet connection: DN 15 (1/2") Rp internal thread
• Outlet pressure range: 35–100 mbar
• Mains voltage: 24 V DC; electrical connection via M20 cable gland on the right side of the connection box
• Valve seat: reduced type
• Accessories include a right-side pressure switch (30–110 mbar) with test point at outlet pressure; left side includes two screw plugs
• Certified to FM, SA, EU standards; size 1 configuration; no inlet flange
