Gas Pressure Regulator & Solenoid Valve, 1/2" DN15, 24V DC, IP65
Mfr # KS88001900
Zoro # G515399764
Specifications
Product Information
Description
The HONEYWELL KROMSCHRODER VAG1-/15R/NWBE is a gas valve rated for use in gas pressure regulation and control applications within specified system parameters. This unit integrates both a Class A pressure regulator (EN 88) and a Class A solenoid valve (EN 161), making it compatible with gas, air, and biologically produced methane as specified by manufacturer guidelines. It incorporates a mechanism designed for rapid actuation per product specifications, has an integrated pilot lamp, and is rated to IP65 ingress protection standard.
Key features include:
- Maximum inlet pressure: 500 mbar (7 psig)
- Outlet connection: DN 15 (1/2") Rp internal thread
- Mains voltage: 24 V DC; electrical connection via M20 cable gland on right side of connection box
- Outlet pressure range: 35–100 mbar
- Valve seat: reduced type
- Accessories include right-side pressure switch (30–110 mbar) with test point at outlet, left-side two screw plugs

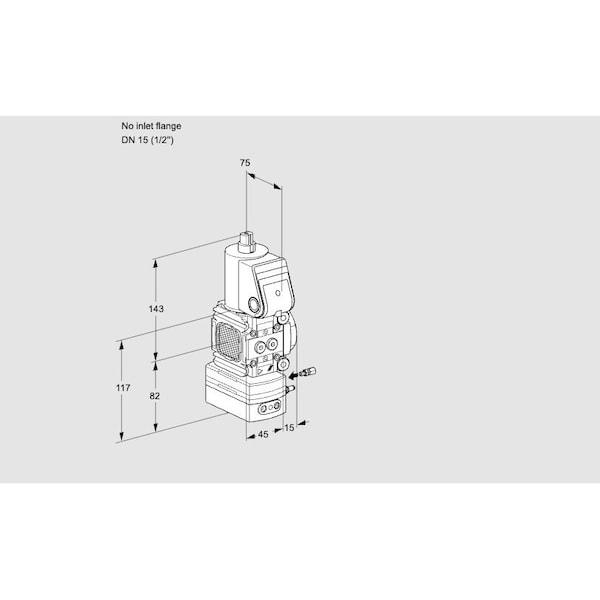

- Size designation: Size 1; no inlet flange included
- Certifications: FM, SA approved; EU certified
