  5. Gas Valve, NG/LP, Direct Spark Ignition, 24VAC, 2.5 to 3.5" WC, Standard Opening, 0.5A

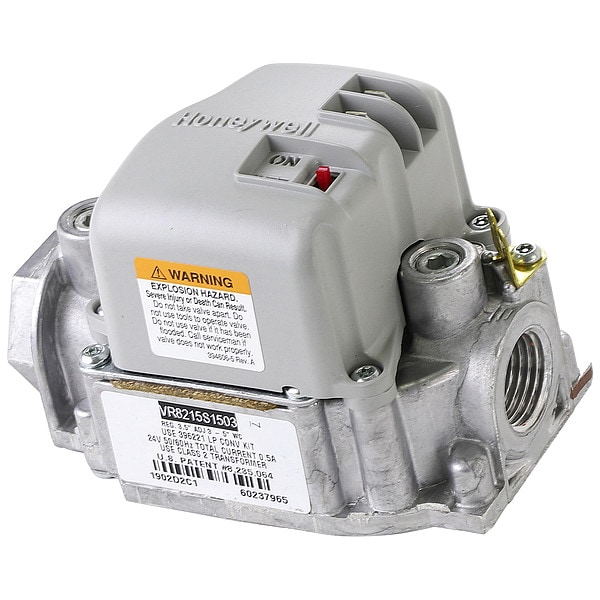

Honeywell Home Gas Valve, NG/LP, Direct Spark Ignition, 24VAC, 2.5 to 3.5" WC, Standard Opening, 0.5A VR8215S1503 - main

Gas Valve, NG/LP, Direct Spark Ignition, 24VAC, 2.5 to 3.5" WC, Standard Opening, 0.5A

  • Mfr # VR8215S1503

  • Zoro # G4420538

product price:  $105.99
/ea
Free Shipping & Returns

Key Features

BtuH Capacity
150,000 to 200,000
Coil Volts
24VAC
Gas Type
NG/LP
Ignition Type
Direct Spark Ignition
Inlet Size
1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
VR8215S1503
Zoro #
G4420538
UPC #
-
Country of Origin
Mexico

Dimensions

Inlet Size
1/2 in
Outlet Size
1/2 in
Port Connection Size
1/2 in
Overall Height
3 3/8 in
Pressure Tap Connection Size
1/8 in
Overall Depth
2 11/16 in
Overall Length
4 7/16 in

Details

BtuH Capacity
150,000 to 200,000
Coil Volts
24VAC
Gas Type
NG/LP
Ignition Type
Direct Spark Ignition
Valve Type
Standard Opening
For Use With
Gas Fired Appliances
Amps AC
0.5A
Ambient Temp. Range
-40 to +175 Degrees F
Item
Gas Valve
LP Conversion Kit
No
Pressure Setting Range
2.5 to 3.5" WC
Flow Direction
Straight-Thru
Includes
Natural to LP Conversion Kit
Side Taps
No
Max. Inlet Pressure
1/2 psi
Standards
CSA International: 112395, Australian Gas Association: 7960
Inlet Pressure Tap
No
Reducer Bushings Included
None
Operating Temperature - Minimum
-40 Degrees F
Includes Conversion Kit
Conversion Kit Included
Manufacturer Series
VR8215
Port Connection Gender
Female
Includes Thermostat
Mechanical Thermostat Not Included
Pilot Type
Direct Spark Ignition, Hot Surface Ignition
Current
0.5 A
Sensing Type
Flame Sensor
Includes Pressure Regulator
Pressure Regulator Included
ANSI Rating
ANSI Z223.1 NFPA No. 54
Includes Pilot Generator Kit
Pilot Generator Kit Not Included
Includes Pressure Tap
Pressure Tap Inlet Included, Pressure Tap Outlet Included
Installation Orientation
Versatile
Voltage
24V AC
Valve Design
Single
Opening Characteristic
Fast Opening
Electrical Connections
Quick Connect Terminal
For Media
Liquid Propane, Natural Gas
Pressure Tap Connection Type
NPT
Port Connection Type
NPT
Heating Capacity - Maximum
200,000 BtuH
Operating Temperature - Maximum
175 Degrees F
Includes Side Taps
Side Taps Not Included

Description

Gas Valve, ANSI Rating ANSI Z223.1 NFPA No. 54, Current 0.5 A, Electrical Connections Quick Connect Terminal, Flow Direction Straight-Thru, For Media Liquid Propane, Natural Gas, Heating Capacity - Maximum 200,000 BtuH, Includes Conversion Kit Conversion Kit Included, Includes On/Off Switch Not Applicable, Includes Pilot Generator Kit Pilot Generator Kit Not Included, Includes Pressure Regulator Pressure Regulator Included
