Gas Pressure Regulator & Solenoid Valve, 1/2" DN15, 24V DC, VAH1T

The HONEYWELL KROMSCHRODER VAH1T is a solenoid valve intended for use in the regulation and control of gas pressure. This unit integrates both a Class A pressure regulator (EN 88) and a Class A solenoid valve (EN 161), suitable for use with gas, air, and biologically produced methane. It features quick opening and closing operation, an integrated pilot lamp, and an IP65-rated enclosure rated IEC standard.

Key features include:

• Maximum inlet pressure: 500 mbar (7 psig)
• Outlet: DN 15 (1/2" Rp internal thread)
• Outlet pressure range: 35–100 mbar
• Mains voltage: 24 V DC; electrical connection via M20 cable gland
• FM and SA approved; EU certified

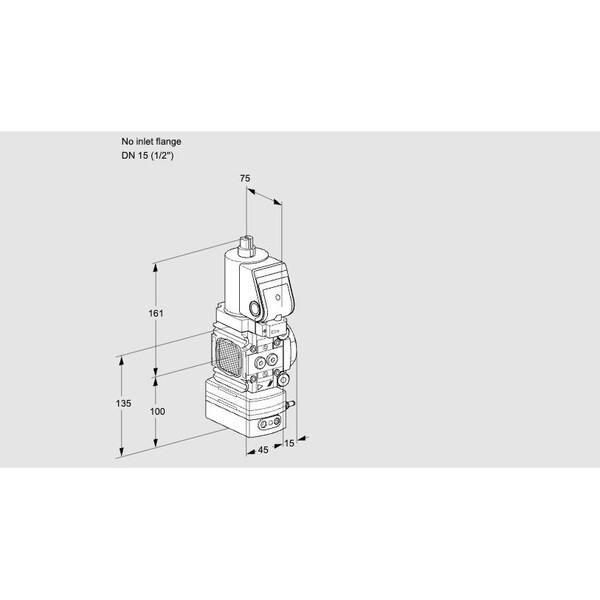

• No inlet flange; reduced valve seat design
• Accessories include right-side pressure switch (30–110 mbar) with test point, left-side screw plugs
• Size 1 configuration
