Gas Pressure Regulator Valve - 1/2" DN15, 24V DC, IP65, VAH1-/15R/NPGRBE

The HONEYWELL KROMSCHRODER VAH1-/15R/NPGRBE is a gas valve rated for control of gas pressure in various systems. This unit combines a Class A pressure regulator (EN 88) with a Class A solenoid valve (EN 161), suitable for use with gas, air, and biologically produced methane. It features an integrated pilot lamp and features rapid actuation mechanism.

Key features include:

• Maximum inlet pressure: 500 mbar (7 psig)
• Outlet connection: DN 15 (1/2") Rp internal thread
• Outlet pressure range: 35–100 mbar
• Electrical connection: M20 cable gland, mains voltage 24 V DC
• Protection rating: IP65
• Certifications: FM, SA approved; EU certified
• Accessories include right-side pressure switch (30–110 mbar) and two left-side screw plugs

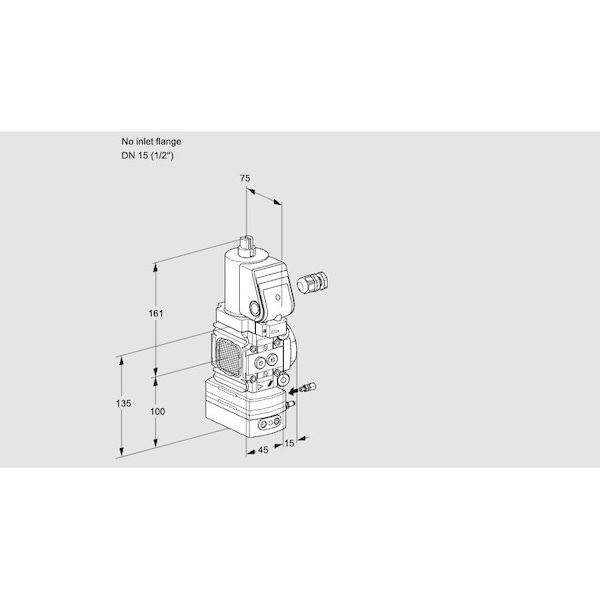

• No inlet flange; reduced valve seat design
