Gas Pressure Regulator, VGBF 25R40, DN25, 10-30 mbar, BSP Threaded

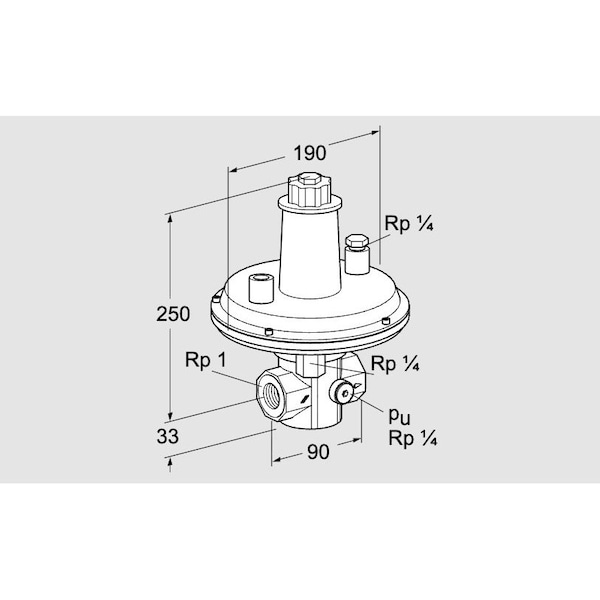

The HONEYWELL KROMSCHRODER VGBF 25R40 is a pressure regulator intended for use in gas applications, rated for an outlet pressure range of 10-30 mbar with a factory setting of 20 mbar. This model includes a safety diaphragm; no purge line is required per design specifications. The unit has a nominal diameter (DN) of 25 mm and utilizes a 1.1-inch BSP threaded connection.

Key features include:

• Outlet pressure: Range is 10 to 30 mbar (factory setting: 20 mbar)
• Connection type: Threaded, BSP, size 1.1 inch
• Nominal diameter (DN): Range available from DN15 to DN150; this model is DN25
• Maximum inlet pressure options are available up to either 0.5 bar, 1 bar, or 4 bar
• Integrated safety diaphragm as specified by manufacturer
• EU certification
