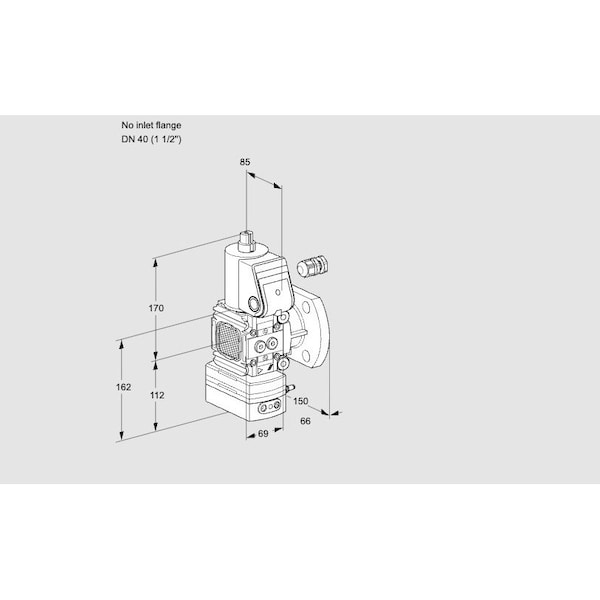

Gas Pressure Regulator with Solenoid Valve, 40mm ISO Flg, 24V DC, IP65

The HONEYWELL KROMSCHRODER VLV, SOLND, PRESS REG, 40MM ISO FLG, VAD2 is a solenoid valve intended for use in applications involving gas pressure regulation and control. This unit integrates both a Class A pressure regulator (EN 88) and a Class A solenoid valve (EN 161), suitable for use with gas, air, and biologically produced methane. It features rapid actuation mechanism and is manufactured in accordance with applicable international standards.

Key features include:

• Maximum inlet pressure: 500 mbar (7 psig)
• Outlet: DN 15 (1/2") Rp internal thread
• Outlet pressure range: 35–100 mbar
• Electrical connection: M20 cable gland; mains voltage: 24 V DC
• Protection rating: IP65
• Certifications: FM and SA approved; EU certified
• Includes pilot lamp indicator
• Accessories available such as right-side pressure switch (30–110 mbar) with test point and left-side screw plugs
