Gas Pressure Switch - Adjustable, DG Series, 0.4-500 mbar

The HONEYWELL KROMSCHRODER SW,PRESS,GAS,DG 50UG 5 is a gas pressure switch rated for use with positive gas and air pressures, as well as negative and differential air pressures. It features an adjustable switching point via a setting dial and operates with media such as gas, air, and flue gases. The DG series includes both European (DG) and US (DG..T) versions to accommodate different certification requirements.

Key features:

• Adjustable switching point using setting dial
• Compatible with gas, air, and flue gases within the specified operating parameters
• Available in models that meet applicable European or US certification requirements
• Pressure range: 0.4 to 500 mbar (European), 0.2 to 200" WC (US)

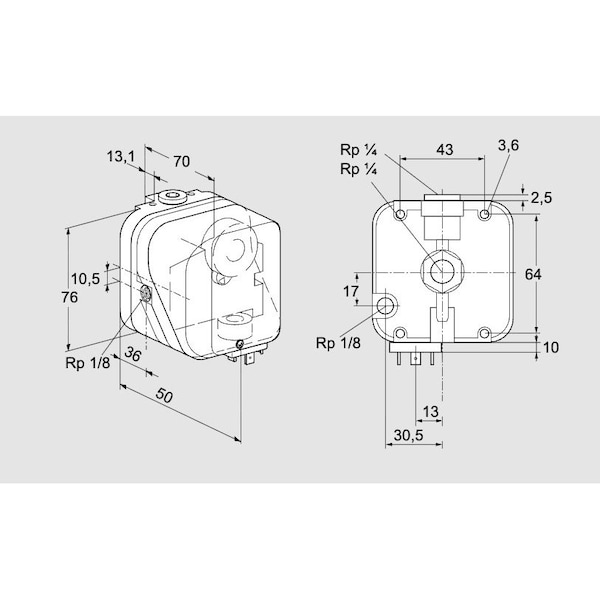

• Pneumatic connections: Internal Rp 1/8", Rp 1/4" options
• Electrical contacts: Silver or gold contacts available with varying voltage/amperage ratings
• Multiple electrical connection types including screw terminals with cable gland or plug/socket options
