Gas Pressure Switch - Adjustable, DG Series, EU/US Versions

The HONEYWELL KROMSCHRODER SW,PRESS,GAS,DG 6U 6N is a gas pressure switch rated for use with positive, negative, and differential pressures in gas and air systems. It includes an adjustable setting dial to select switching point within the specified range and operates with gases such as natural gas, air, and flue gases. The DG series includes both European (DG) and US (DG..T) versions to accommodate different regional standards.

Key features:

• Includes an adjustable setting dial to select switching point within the specified range
• Compatible with gas, air, and flue gases as specified by manufacturer
• Available in European (DG) version with EU certification or US (DG..T) version with UL/FM approval
• Pressure range: 0.4 to 500 mbar (European), 0.2 to 200" WC (US)

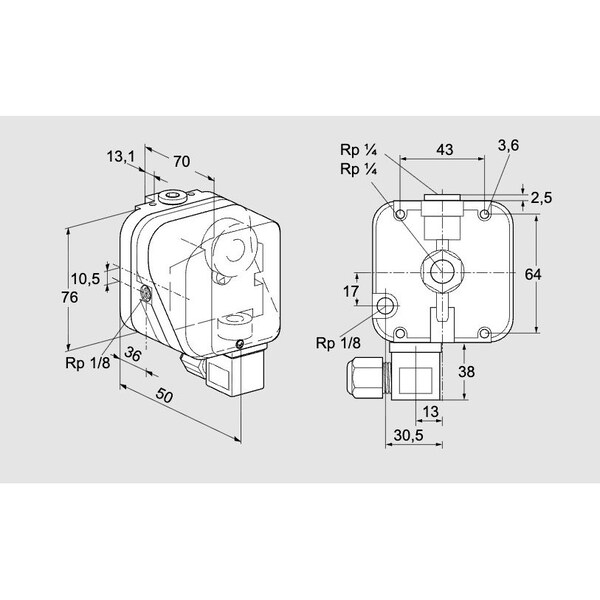

• Multiple pneumatic connection options: Rp 1/8", Rp 1/4", NPT threads available depending on model
• Electrical contacts: silver or gold; supports various voltage/amperage ranges
• Electrical connections include screw terminals, cable glands/conduits, or plug-and-socket configurations
