Gas Pressure Switch - Adjustable, DG/DG..T, 0.4-500 mbar/0.2-200" WC

The HONEYWELL KROMSCHRODER Gas Pressure Switch DG 500TG is a pressure switch rated for use with positive, negative, and differential gas and air pressure applications. It is available in configurations compatible with European (DG) and US (DG..T) market requirements, with adjustable switching points via a setting dial. The unit is suitable for use with specified media: gas, air, or flue gases within the stated application parameters.

Key features include:

• Adjustable switching point using a setting dial
• Compatible with gas, air, and flue gases

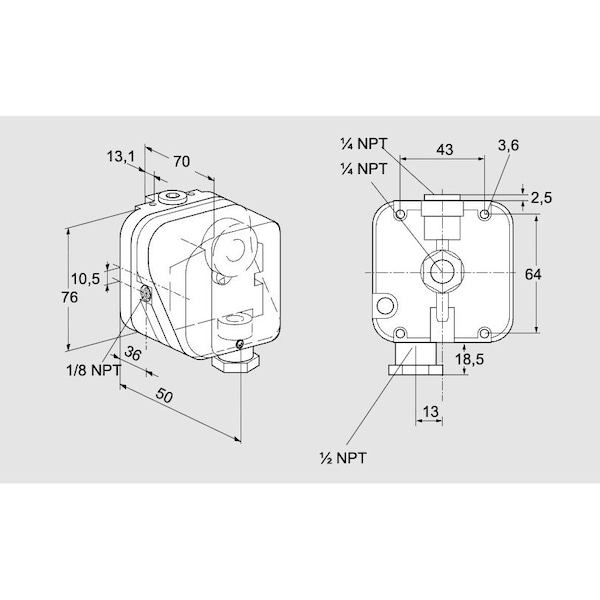

• Available in European (DG) version: range 0.4 to 500 mbar (0.16 to 200 "WC), internal Rp 1/8" & Rp 1/4" pneumatic connections
• Available in US (DG..T) version: range 0.2 to 200" WC, internal Rp/NPT pneumatic connections
• Electrical contacts: silver (24–250V AC; up to 5A), gold (5–250V AC; up to 5A)
• Multiple electrical connection options including screw terminals and plug/socket configurations
• Optional locking/manual reset on the US version
