Gas Solenoid Valve - Double, ISO Flange, 500 mbar, VCS780F05NNQ
Mfr # KS88203623
Zoro # G915296427
Specifications
Product Information
Details
Description

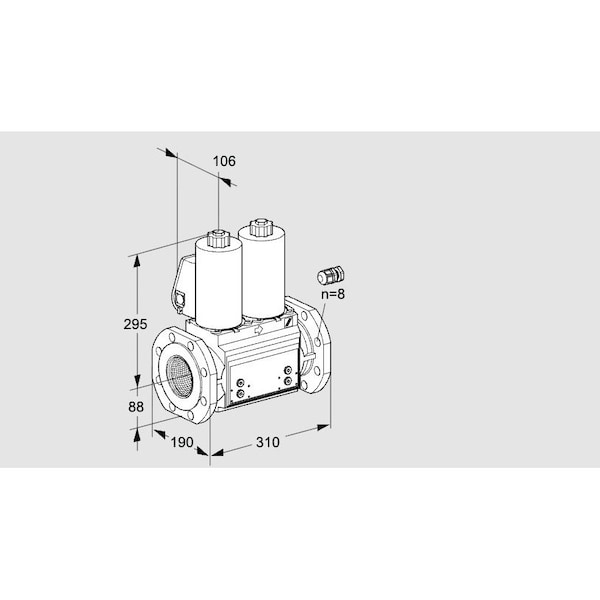

The HONEYWELL KROMSCHRODER VCS780F05NNQ is a double solenoid valve intended for use with gas and air in industrial systems. Classified as a Class A gas safety valve to EN 161, it features automatic shut-off capability and is configured to be closed when de-energized. The unit features an ISO flange connection (80 mm), rated for a maximum operating pressure of 500 mbar, and includes both pilot lamp indication and flow adjustment capabilities. It holds EU certification as well as FM and CSA approvals, with compatibility for systems that require components rated up to SIL 3 and PL e.
Key features include:
- Valve size range: DN 10 to DN 125
- Connection type: Threaded or flanged options available
- Operating voltage options: 24 V DC, 120 V AC, or 230 V AC
- Electrical connection via terminal block
- Quick opening/closing or slow opening/quick closing operation modes
- IP65 ingress protection rating
- Available versions include models with position indicators, visual indicators, fitted bypass/pilot gas valves, or integrated pressure switches
