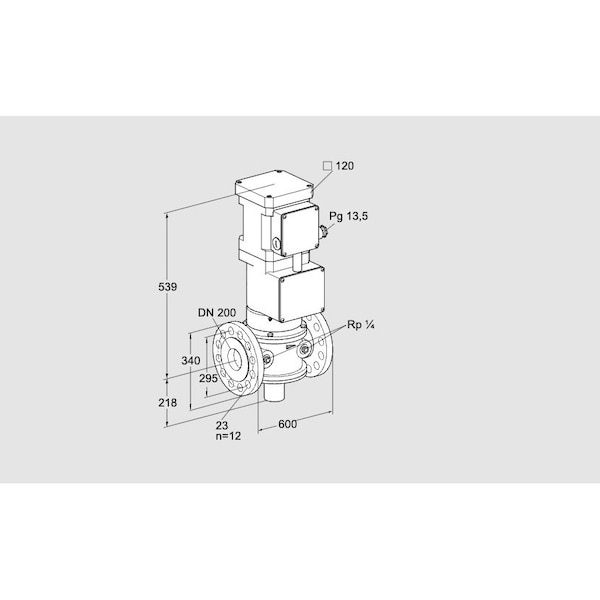

Motorized Gas Safety Valve - Class A, 2-Step, DN 200/100, EN 161 Certified

The HONEYWELL KROMSCHRODER VK 200/100F40T5HG93 is a Class A gas safety valve intended for use in automatic shut-off applications in gas and air systems, per manufacturer specifications. This electrically operated valve remains closed when de-energized, features slow opening and quick closing action, and meets EN 161 standards. It is EU certified and suitable for use with various connection types and housing materials.

Key features include:

• Two-step operation (VK..Z)
• GGG 40 housing option for specific system requirements
• Stronger drives available (VK..H) for higher pressure applications
• Options available with explosion protection features suitable for installation in areas classified as zone 1 or 2, according to applicable standards
• Nominal diameter range: DN 40 to DN 250
• Connection types: threaded or flanged
• Operating pressure range: max. 230 mbar to max. 8 bar
• Mains voltage compatibility: 100 V AC to 220/240 V AC
• Housing material options: AlSi or GGG 40; electrical connections via terminals or standard plug/socket Additional versions are available with flow adjustment, position indicator, holding relay for manual restart, or Viton valve disc seal.
