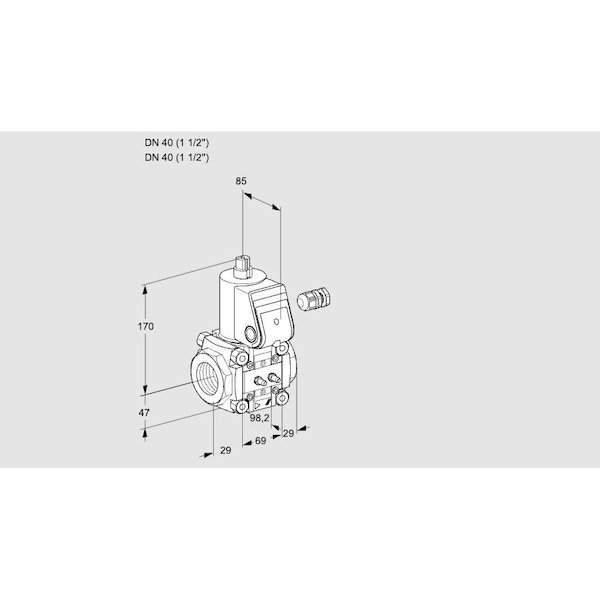

Solenoid Gas Safety Valve - 500 mbar, IP65, Class A, VAS240R/NW

The HONEYWELL KROMSCHRODER VAS240R/NW is a Class A solenoid gas safety valve intended for use as an automatic shut-off valve in gas and air systems. It operates with a maximum pressure of 500 mbar and features a closed position when de-energized. The unit includes a pilot lamp, flow adjustment capability, and has an ingress protection rating of IP65. This model meets EU certification standards as well as FM and CSA approvals, and holds certifications including SIL 3 and PL e.

Key features include:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Opening/closing types: quick opening/quick closing or slow opening/quick closing
• Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions with position indicator, visual indicator, fitted bypass/pilot gas valve, or fitted pressure switches
