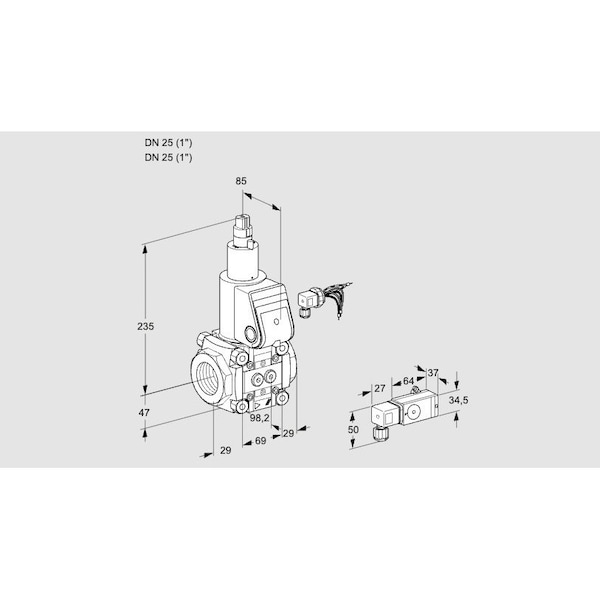

Solenoid Gas Safety Valve – VAS225R/LW, 500 mbar, IP65, EN 161 Rated
Mfr # KS88031123
Zoro # G315423843
Specifications
Product Information
Description
The HONEYWELL KROMSCHRODER VAS225R/LW is a Class A solenoid gas safety valve intended for use as an automatic shut-off component in gas and air systems. It operates according to EN 161 standards, remains closed when not energized, and is rated for a maximum operating pressure of 500 mbar. The unit includes a pilot lamp and flow adjustment capability, with an IP65 rating per IEC standard for protection against dust and water ingress. This valve holds EU certification as well as FM and CSA approvals, suitable for installation in applications requiring up to SIL 3 or PL e.
Key features include:
- Size range: 1 to 9; DN (nominal diameter): 10 to 125
- Connection options: threaded or flanged
- Operation types: quick opening/quick closing or slow opening/quick closing
- Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
- Electrical connection via terminal block
- Available versions with position indicator, visual indicator, fitted bypass/pilot gas valve, or fitted pressure switches DG../VC
