Solenoid Valve for Gas/Air, Class A, 500 mbar, EN 161, IP65 Rated

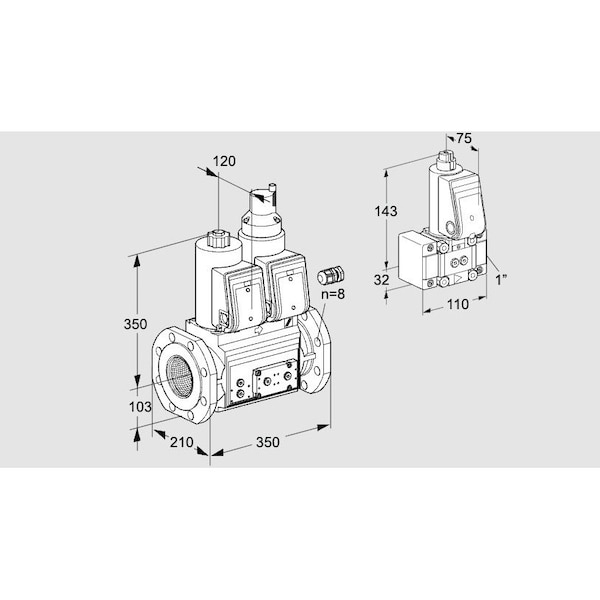

The HONEYWELL KROMSCHRODER VCS8100F05NLKR3E/PPPP/PPZ- is a Class A solenoid valve intended for use in applications requiring the automatic shut-off of gas and air. This valve remains closed when de-energized and includes a pilot lamp and flow adjustment mechanism. It is certified to EN 161 standards, with a maximum operating pressure of 500 mbar, an IP65 enclosure rating, and approvals from FM and CSA. The product is also certified for use in systems up to SIL 3 and PL e.

Key features include:

• Size range: 1 to 9; nominal diameter (DN): 10 to 125
• Connection options: threaded or flanged
• Operation: available in variants with specified actuation speeds (refer to technical documentation)
• Rated for operation at mains voltages of 24 V DC, 120 V AC, or 230 V AC as specified by model configuration
• Electrical connection provided via terminal interface
• Versions include optional position indicator, visual indicator, integrated bypass or pilot gas valve components, and compatible pressure switches DG../VC
