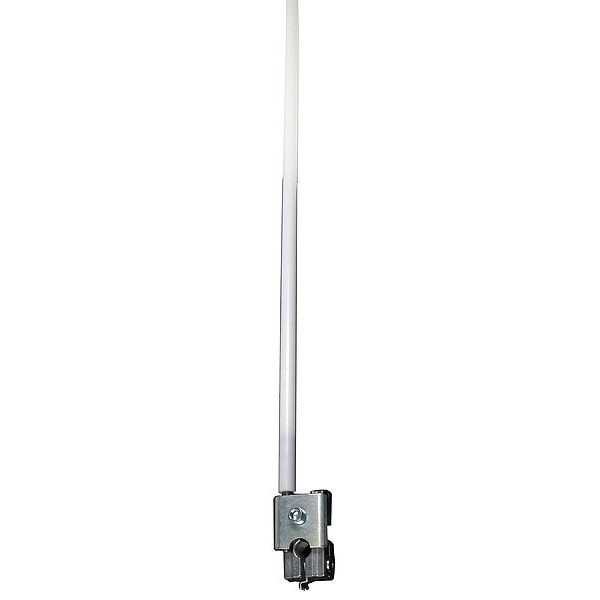

Limit Switch - Heavy-Duty, Adjustable Rod Arm, NEMA/IP Rated, HDLS Series

HDLS Series heavy-duty limit switches feature a boss-and-socket head design intended to retain the actuator in position, an all-metal drive train rated for use within specified temperature ranges, and self-lifting pressure plate terminals designed to facilitate wiring. The housing is constructed in accordance with NEMA 1, 3, 4, 4X, 6, 6P, 12 and 13 standards and IP65/66/67 ratings. Side rotary versions can be modified for clockwise or counterclockwise operation with operating heads that rotate in 90° increments.

Key features:

• Actuator Style/Type: Rod
• Arm Adjustability: Adjustable
• Arm Material: Aluminum
• Arm Length: Up to 21 in (maximum arm length listed as 20 in)
• Arm Width/Depth: Both are 0.75 in
• Compatible Brands/Series: Honeywell; Series LSZ; compatible with models including Mfr. No. 14CE, 914CE, LS, HDLS (including Fully Potted and Stainless Steel variants)
• Standards: RoHS
