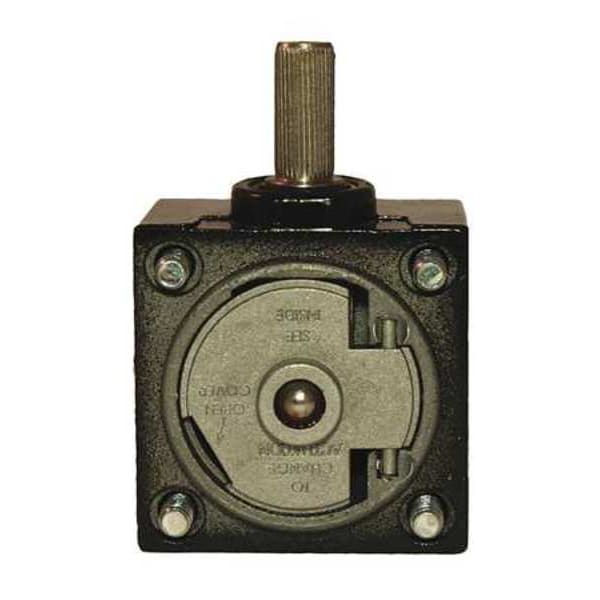

Limit Switch Rotary Head, Side-Mount, CW/CCW, HDLS/LSA Series Compatible

HDLS Series heavy-duty limit switches include boss-and-socket head design for head-to-body attachment, unique all-metal drive train as specified in product materials, and self-lifting pressure plate terminals to save wiring time. With its housing constructed per listed enclosure ratings, the HDLS Series is rated for use within NEMA Types 1, 3 ,4 ,4X ,6 ,6P and IP65/66/67 standards. Side rotary versions may be modified for CW and/or CCW operation, while operating heads may be rotated 90°. Low and high temperature sealing options are available.

The Honeywell Limit Switch Replacement Rotary Head for LSA Series is a side-mounted rotary lever actuator intended for use with Honeywell HDLS and LSA series limit switches per manufacturer specifications. It supports both clockwise (CW) and counterclockwise (CCW) movement with an actuator style suited for various switch configurations. This item is intended for use with specific manufacturer model numbers including: 1J, 2B, 3K, 4L, 5A, 6B, 7L, 8A and LSA-1A.

Key Features:

• Actuator Style: Rotary lever; side location
• Movement: Supports both CW (clockwise) and CCW (counterclockwise)
• Differential Travel: Maximum of 5 degrees
• Overtravel: Minimum of 60 degrees
• Pretravel: Maximum of15 degrees
• Operating Torque: Requires up to 4 in-lb torque
• Operating Temperature Range: From 10°F to 250°F
• Voltage Rating: Up to 600V AC / 250V DC
• NEMA Enclosure Ratings: Types 1, 3 ,4 ,4X ,6 ,and 6P
• Standards Compliance: RoHS
