This item is Discontinued.

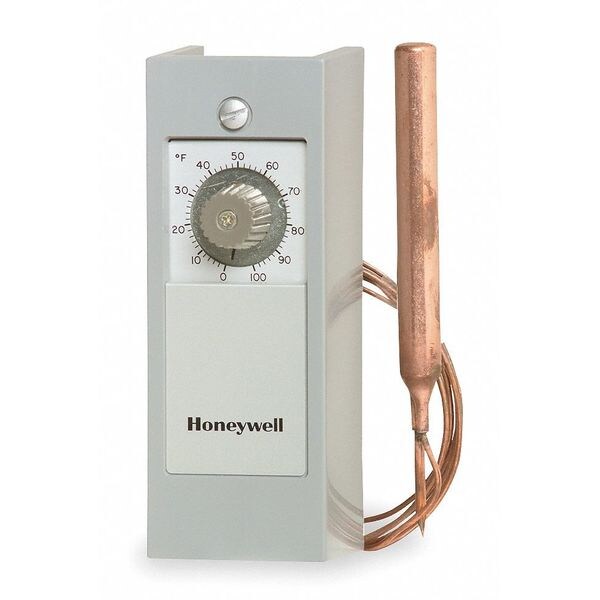

Honeywell Line Volt Mechanical Tstat, 0 Degrees to 100 Degrees F, SPDT T678A1015

Line Volt Mechanical Tstat, 0 Degrees to 100 Degrees F, SPDT (Discontinued)

  • Mfr # T678A1015
  • Zoro # G2095895
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
T678A1015
Zoro #
G2095895
UPC #
-
Country of Origin
Unknown

Dimensions

Width
2 in
Height
5 5/8 in
Depth
2 5/8 in
Capillary Length
240 in
Sensing Bulb Dia.
1/2 in
Sensing Bulb Length
4 3/16 in

Details

Switch Action
Switches Operate in Sequence, Right Switch Breaks R-B and Makes R-W at Set Point on a Temp Rise, Left Switch Breaks R-B and Makes R-W if Temp Continues to Rise Through Interstage Differential
Sensor Type
Copper Bulb
Differential
3 Degrees to 10 Degrees F
Thermostat Control Range
0 Degrees to 100 Degrees F
Switch Type
SPDT
Color
Gray
Locked Rotor Amps @ 120V
48A
Inductive Amps @ 120V
8A
Inductive Amps @ 240V
5A
Item
Line Volt Mechanical Tstat
Thermostat Item
Line Voltage Mechanical Thermostat
Full Load Amps @ 240VAC
5.1A
Enclosure Type
Impact Resistant Norel
Locked Rotor Amps @ 240V
30.6A
Full Load Amps @ 120VAC
15A
Remote Sensing Bulb Included
Yes
Thermostat Switch Type
SPDT
Number of Switches
2
Thermostat Programmable
No
Remote Sensing Capability
Yes
Thermostat Heating/Cooling
Heating/Cooling
Contact Rating Resistive @ 120V
8A
Thermostat Voltage
120 to 277V AC
Standards
UL, E4436, Vol. 4, Sec. 11, Guide XAPX, CSA Listed: Report -1
For Use With
2-Stage Heating or Cooling
Application
2-Stage Heating or Cooling
Mounting
Any Position Outside the Sensing Area, 3 Slotted Holes In Back Of Case
Number of Relay Outputs
2
Control Range
0 Degrees to 100 Degrees F
Agency Compliance
UL, E4436, Vol. 4, Sec. 11, Guide XAPX, CSA Listed: Report -1
Type
Remote Bulb Temperature Control
Display
Analog
Voltage Range
120 to 277VAC
Features
2-Stage, Controller without Bulb Holder, Maximum Connected Load Equals 2000VA

Description

Line Volt Mechanical Tstat, Thermostat Switch Type SPDT, Thermostat Control Range 0 Degrees to 100 Degrees F, Thermostat Voltage 120 to 277V AC, Full Load Amps @ 120VAC 15A, Full Load Amps @ 240VAC 5.1A, Thermostat Programmable No, Remote Sensing Capability Yes, Thermostat Heating/Cooling Heating/Cooling, Remote Sensing Bulb Included Yes

Restrictions

Hazardous material
