  6. Industrial Snap Action Switch, Overtravel, Plunger Actuator, SPDT, 15A @ 480V AC Contact Rating

This item is Discontinued.

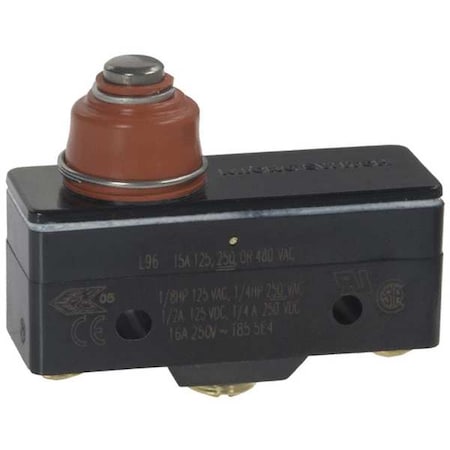

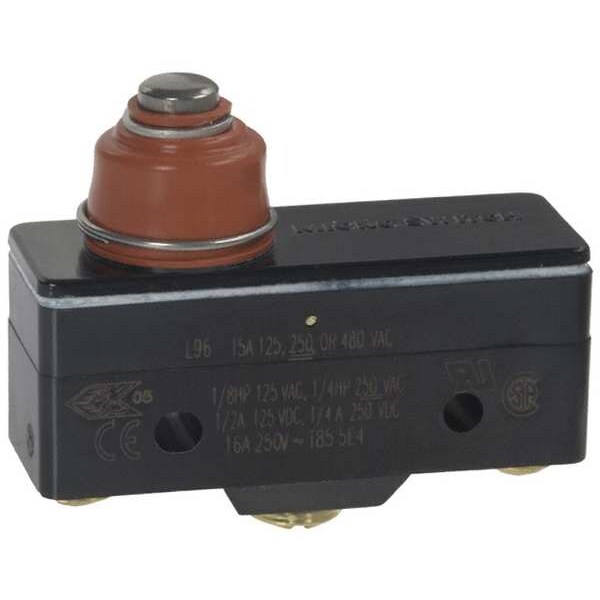

Honeywell Micro Switch Industrial Snap Action Switch, Overtravel, Plunger Actuator, SPDT, 15A @ 480V AC Contact Rating BZ-2RS5551-A2

Industrial Snap Action Switch, Overtravel, Plunger Actuator, SPDT, 15A @ 480V AC Contact Rating (Discontinued)

  • Mfr # BZ-2RS5551-A2
  • Zoro # G0872006
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BZ-2RS5551-A2
Zoro #
G0872006
UPC #
-
Country of Origin
Mexico

Dimensions

Height - Snap Action Switch
0.95 in
Width - Snap Action Switch
1.94 in
Depth - Snap Action Switch
0.07 in
Height
0.95"
Depth
0.069"
Actuator Length
1.94"
Mounting Dimension - Snap Action Switch
1.00 in Centers
Length
1.94"
Mounting Dimension
1.00" Centers
Overall Height
0.95 in
Overall Depth
0.07 in
Overall Width
1.94 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Overtravel Roller, Plunger
AC Contact Rating - Snap Action Switch
15 A @ 480 V
DC Contact Rating - Snap Action Switch
15 A @ 240 V
Contact Form- Switches
SPDT
Series
BZ
Voltage Rating
125/250/480VAC
Terminal Type
Screw
Over Travel
0.06 in
Release Force
4 oz
Max. Pretravel
0.07 in
Standards
CSA, ENEC, UL Listed
Differential Travel
0.0025 in
Operating Temp. Range
-67 Degrees to 185 Degrees F
Type of Actuator
Medium Overtravel Plunger
Current Rating
15a
Contact Form
SPDT
Watertight - Snap Action Switch
No
Operating Force
15 oz
Housing Material
Phenolic
Electrical Connection - Snap Action Switch
Screw
DC Contact Rating
15 A @ 240 V
AC Contact Rating
15 A @ 480 V
Actuator Style
Plunger
Body Material
Phenolic
Electrical Connection
Screw
Differential Travel - Maximum
0.0025 in

Description

Snap Action Switch, Overtravel Roller, Plunger, AC Contact Rating - Snap Action Switch 15 A @ 480 V, DC Contact Rating - Snap Action Switch 15 A @ 240 V, Contact Form- Switches SPDT, Height - Snap Action Switch 0.95 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.07 in, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series BZ
