  13. Miniature Snap Action Switch, Lever, Long Actuator, 1NC

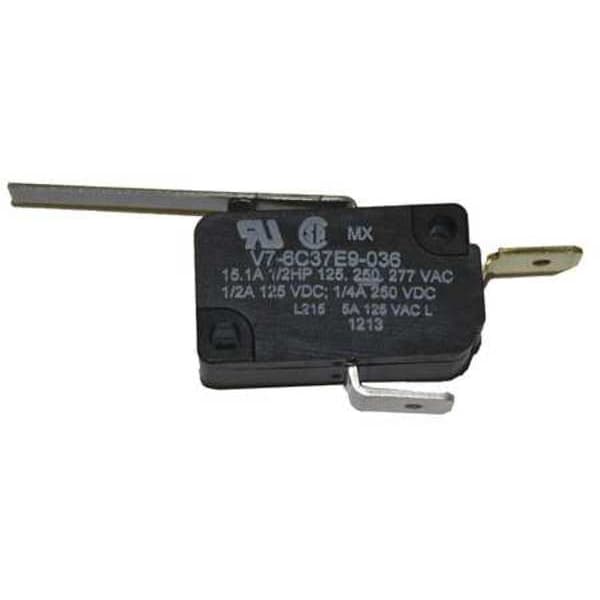

Honeywell Miniature Snap Action Switch, Lever, Long Actuator, 1NC V7-6C37E9-036 - main

Miniature Snap Action Switch, Lever, Long Actuator, 1NC

  • Mfr # V7-6C37E9-036

  • Zoro # G4734536

product price: $6.29
/ea

Key Features

Actuator Type - Snap Action Switch
Lever, Long
AC Contact Rating - Snap Action Switch
15.1 A 1/2 HP 125 V, 250 V or 277 V
DC Contact Rating - Snap Action Switch
1 /2A 125 V; 1/4 A 250 V
Contact Form- Switches
1NC
Lever Actuator Length - Snap Action Switch
1.75 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
V7-6C37E9-036
Zoro #
G4734536
UPC #
-
Country of Origin
Mexico

Dimensions

Lever Actuator Length - Snap Action Switch
1.75 in
Height - Snap Action Switch
0.63 in
Width - Snap Action Switch
1.14 in
Depth - Snap Action Switch
0.4 in
Depth
0.4"
Mounting Dimension - Snap Action Switch
0.87 in Centers
Mounting Dimension
0.41 x 0.87" Centers
Length
1.14"
Height
0.63"
Actuator Length
1.75"
Lever Actuator Length
1.75 in
Overall Width
1.14 in
Body Height
0.63 in
Mounting Hole Diameter
1/8 in
Overall Depth
0.4 in
Overall Height
0.63 in
Body Depth
0.4 in
Body Width
1.14 in

Details

Item
Miniature Snap Action Switch
Actuator Type - Snap Action Switch
Lever, Long
AC Contact Rating - Snap Action Switch
15.1 A 1/2 HP 125 V, 250 V or 277 V
DC Contact Rating - Snap Action Switch
1 /2A 125 V; 1/4 A 250 V
Contact Form- Switches
1NC
Contact Form
1NC
Operating Force
1.67N
Voltage Rating
250VAC
Series
V7
Electrical Connection - Snap Action Switch
1/4 in Quick Connect
Type of Actuator
Long Straight Lever
Terminal Type
Quick Connect
Operating Temp. Range
-40 Degrees C to 85 Degrees C [-40 Degrees F to 185 Degrees F], options for 175 Degrees C [347 Degrees F]
Release Force
1 ozf
Housing Material
PCT Polyester Thermoplastic
Watertight - Snap Action Switch
No
Max. Pretravel
4.37 mm
Over Travel
2.31 mm
Standards
CSA, ENEC, RoHS, UL Listed
Differential Travel
0.038 in
Current Rating
15A
AC Contact Rating
15 A @ 250 V
DC Contact Rating
0.25 A @ 250 V, 0.5 A @ 125 V
Force to Operate
6 oz (1.67N) OF
Contact Rating
15A 277VAC (VDC Rated)
Over-Travel
0.091 in (2.31mm) OT
Type
Miniature Limit Switch
Pre-Travel - max
0.172 in (4.37mm) PT
Operating Temperature
-40°F (-40°C) to 180°F (82°C)
Poles/Contacts
SPNC
Head
Lever
Operator Configuration
Straight
Differential-Travel - max
0.038 in (0.97mm) DT
Connection
Quick Connect Terminal
Head Action
Spring Return, Standard
Center Mounting Hole Distance
0.88 in
Body Material
Polyester
Operating Temperature - Maximum
365 Degrees F
Operating Force - Maximum
6 ozf
Overtravel
0.091 in
Pretravel
0.172 in
Differential Travel - Maximum
0.038 in
Electrical Connection
Quick Connect
Actuator Style
Lever
Operating Temperature - Minimum
-40 Degrees F

Description

Miniature Snap Action Switch, Lever, Long, AC Contact Rating - Snap Action Switch 15.1 A 1/2 HP 125 V, 250 V or 277 V, DC Contact Rating - Snap Action Switch 1 /2A 125 V; 1/4 A 250 V, Contact Form- Switches 1NC, Lever Actuator Length - Snap Action Switch 1.75 in, Height - Snap Action Switch 0.63 in, Width - Snap Action Switch 1.14 in, Depth - Snap Action Switch 0.4 in, Electrical Connection - Snap Action Switch 1/4 in Quick Connect, Mounting Dimension - Snap Action Switch 0.87 in Centers
