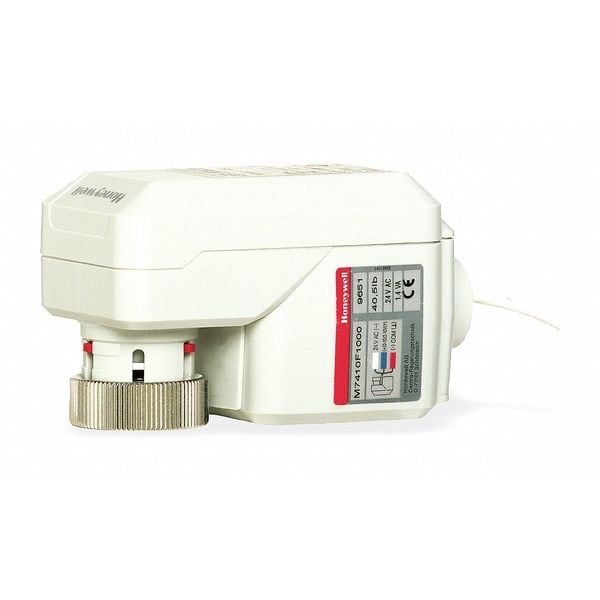

Honeywell Modulating Valve Actuator, 20 to 28 Vac M7410F1000 - main

Modulating Valve Actuator, 20 to 28 Vac

  • Mfr # M7410F1000

  • Zoro # G2390166

product price:  $235.99
/ea
Free Shipping & Returns

Key Features

Type
Modulating Low Voltage
Input Voltage
2 to 10V DC
For Use With
V5852, V5853, V5862, V5863 valves
Width (In.)
1 15/16 in
Stem Force (Lb.)
40.5
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M7410F1000
Zoro #
G2390166
UPC #
085267171731
Country of Origin
Hungary

Dimensions

Width (In.)
1 15/16 in
Depth (In.)
3 15/16 in
Length (In.)
3 15/16 in
Height (In.)
2 3/8 in
Overall Height
3 15/16 in
Overall Length
4 in
Overall Width
2 1/4 in
Overall Depth
4 in
Electrical Lead Length
5 ft
Stroke Length
1/4 in

Details

Item
Electric Globe Valve Actuator
Type
Modulating Low Voltage
Input Voltage
2 to 10V DC
For Use With
V5852, V5853, V5862, V5863 valves
Stem Force (Lb.)
40.5
Includes
Direct/Reverse Acting Switch
Hz
60
Electrical Connections
Plenum Rated Cable
Frequency
50/60 Hz
Product Type
Electric Globe Valve Actuator
Compatible with Manufacturer Model Number
V5862A, V5863A Valves
Compatible with Series
3000
Stem Force
67.5 lb
Electrical Connection
Plug-In
Compatible Manufacturer Part Number
V5862A, V5863A Valves
Compatible with Manufacturer Part Number
V5862A, V5863A Valves
Compatible with Manufacturer Model Number [NEW]
V5862A, V5863A Valves
Signal Type
Proportional
IP Rating
IP42
Valve Application
Valve
Rated Torque
486 in-lb
Application
Globe Valves
Spring Return
Non-Spring Return
Minimum Operating Temperature
32 Degrees F
Maximum Operating Temperature
122 Degrees F
Number of Auxiliary Switches
0
Power Consumption
1.8 VA
Power Rating
1.2W
Voltage
2 to 10V DC
NEMA Rating
Not Rated
Return Action
Non-Spring Return
Operating Temperature - Minimum
32 Degrees F
Control Signal
Proportional
Torque
41 in-lb
Compatible Series
3000
Cycle Time
125 sec
Electrical Connection Type
Cable
Operating Temperature - Maximum
122 Degrees F

Description

Electric Globe Valve Actuator, Application Globe Valves, Compatible Series 3000, Control Signal Proportional, Cycle Time 125 sec, Electrical Connection Type Cable, Electrical Lead Length 5 ft, Frequency 50/60 Hz, Includes Direct/Reverse Acting Switch, NEMA Rating Not Rated, Number of Auxiliary Switches 0, Operating Temperature - Maximum 122 Degrees F, Operating Temperature - Minimum 32 Degrees F, Overall Depth 4 in, Overall Height 3 15/16 in, Overall Width 2 1/4 in, Power Consumption 1.8 VA
