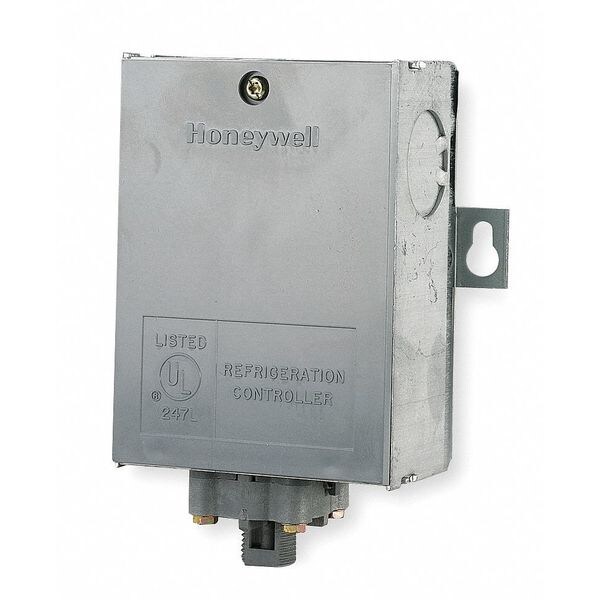

Honeywell Pneumatic-Electric Switch, Surface, Barb Fitting for 1/4 OD Plastic Tubing P658A1013/U - main

Pneumatic-Electric Switch, Surface, Barb Fitting for 1/4 OD Plastic Tubing

  • Mfr # P658A1013/U

  • Zoro # G1900805

product price: $269.99
/ea
Free Shipping & Returns

Key Features

Air Connections
Barb Fitting for 1/4 OD Plastic Tubing
Voltage
125250/277
Contact Action
Makes R to B and Breaks R to W on a Pressure Fall
Max. Safe Air PSI
30 psi
Depth (In.)
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P658A1013/U
Zoro #
G1900805
UPC #
085267063760
Country of Origin
United States

Dimensions

Depth (In.)
2 in
Width (In.)
3 3/8 in
Height (In.)
5 3/8 in
Air Connection Size
1/4 in
Overall Depth
5 3/8 in
Overall Width
2 in
Overall Length
3 3/4 in
Conduit Size
3/4 in

Details

Item
Pneumatic-Electric Switch
Air Connections
Barb Fitting for 1/4 OD Plastic Tubing
Voltage
125250/277
Contact Action
Makes R to B and Breaks R to W on a Pressure Fall
Max. Safe Air PSI
30 psi
Includes
Screw terminals
Throttling Range
2 to 24
Max. Safe Operating Temp. (F)
-20 to 140
Control Range
2 to 24 psi
Agency Compliance
CSA Certified, UL Listed
Type
Pneumatic Signal to Activate Electric Switch, Surface Mount, with Case
Standards
CSA, UL Listed
Mounting Style
Surface
Application
Day-Night Control, Electric Heating Systems, Electric Heaters, Fan Control, Interlock Functions, Pumps
Product Type
Pressure Control
Resistive Load Current @ 240V AC
25 A
Air Connection Type
Barbed Hose
Case Material
Painted Ferrous
Locked Rotor Current @ 120V AC
25 A
Locked Rotor Current @ 240V AC
25 A
Signal Pressure - Maximum
24 psi
Pilot Duty @ 240V AC
750 VA
Switch Action
Normally Closed
Diaphragm Material
Neoprene
Full Load Current @ 240V AC
25 A
Number of Function
Dual Function
Air Connection Gender
Male
Electrical Connections
Screw Terminal
Operating Temperature - Maximum
140 Degrees F
Number of Switches
2
Pilot Duty @ 120V AC
750 VA
Allowable Pressure - Maximum
30 psi
Signal Pressure - Minimum
2 psi
Operating Temperature - Minimum
40 Degrees F
Transmitter Output
None
Contact Form
SPDT
Resistive Load Current @ 120V AC
25 A
Full Load Current @ 120V AC
25 A
Pressure Differential
2 psi

Description

Pneumatic-Electric Switch, Air Connection Gender Male, Air Connection Size 1/4 in, Air Connection Type Barbed Hose, Allowable Pressure - Maximum 30 psi, Application Day-Night Control, Electric Heating Systems, Electric Heaters, Fan Control, Interlock Functions, Pumps, Case Material Painted Ferrous, Conduit Size 3/4 in, Contact Form SPDT, Diaphragm Material Neoprene, Electrical Connections Screw Terminal, Full Load Current @ 120V AC 25 A, Full Load Current @ 240V AC 25 A
