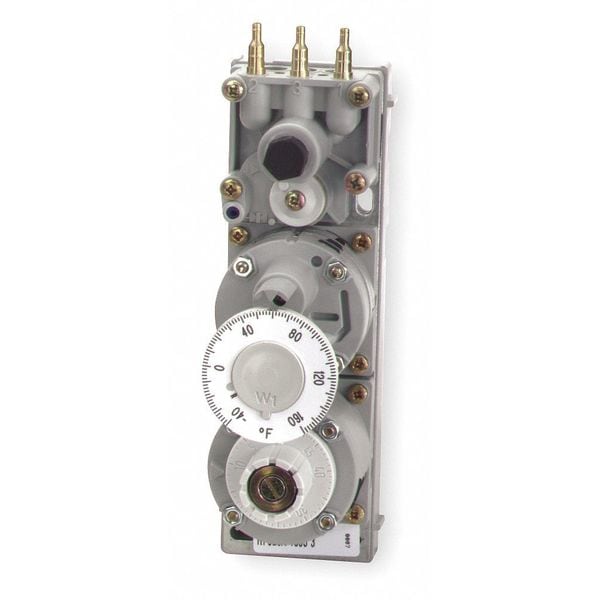

Pneumatic Receiver Controller, Not Applicable, Single Input

  • Mfr # RP920A1033/U

  • Zoro # G0473541

product price:
$
674.99
/ea
Free Shipping & Returns

Key Features

Control Type
Field Selectable
Characteristics
High Capacity, Proportional, Single or Dual Input
Air Input Range (PSI)
3 to 15
Air Consumption (SCFM)
0.07 scfm with 1 psi pressure drop at 18 psi main air supply
Authority
5 to 300% of primary Sensory span, adjustable
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
RP920A1033/U
Zoro #
G0473541
UPC #
085267083294
Country of Origin
United States
Item
Pneumatic Receiver Controller
Control Type
Field Selectable
Characteristics
High Capacity, Proportional, Single or Dual Input
Air Input Range (PSI)
3 to 15
Air Consumption (SCFM)
0.07 scfm with 1 psi pressure drop at 18 psi main air supply
Authority
5 to 300% of primary Sensory span, adjustable
Air Consumption
36.3 scim
Application
Integral Control of Temperature, HVAC Pressure/Dewpoint Monitoring
Output
3 to 13
Compensation Start Point
0 to 100% of compensation Sensory span, adjustable
Type
Single Input
Pressure (PSI)
17 to 30
Number of Inputs
Single Input
Outlet Port Connection Gender
Male
Adjustable Integral Time - Minimum
30 sec
Authority - Maximum
300 %
Supply Pressure
15 psi
Number of Inlet Ports
1
Authority - Minimum
5 %
Outlet Port Connection Type
Barbed Hose
Operating Temperature - Minimum
40 Degrees F
Control Action
Direct Acting
Inlet Port Connection Gender
Male
Inlet Port Connection Type
Barbed Hose
Operating Humidity - Maximum
95 %
Signal Pressure - Minimum
3 psi
Operating Humidity - Minimum
5 %
Operating Temperature - Maximum
130 Degrees F
Control Signal
Proportional Plus Integral
Signal Pressure - Maximum
15 psi
Adjustable Integral Time - Maximum
20 min

Description

Pneumatic Receiver Controller, Adjustable Integral Time - Maximum 20 min, Adjustable Integral Time - Minimum 30 sec, Air Consumption 36.3 scim, Application Integral Control of Temperature, HVAC Pressure/Dewpoint Monitoring, Authority - Maximum 300 Percent, Authority - Minimum 5 Percent, Control Action Direct Acting, Control Signal Proportional Plus Integral, Inlet Port Connection Gender Male, Inlet Port Connection Size 1/4 in, Inlet Port Connection Type Barbed Hose, Mounting Style Not Applicable
