  11. Thermostat, 1-1/2" D, 2" W, 1" H, Element Type: Insertion
Shop All Fan and Limit Controls
Supco

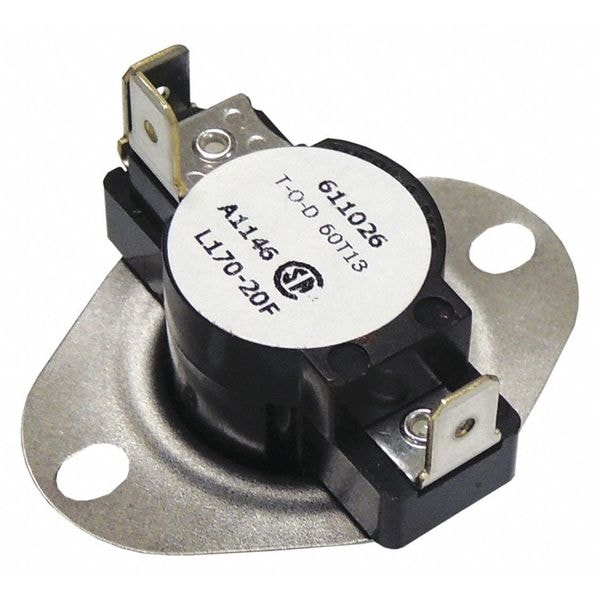

Thermostat, 1-1/2" D, 2" W, 1" H, Element Type: Insertion

product price: $9.49
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Temp. Range (F) 150 to 170
  • Type Limit, Automatic Reset
  • Switch Type SPDT
  • Depth (In.) 1 1/2 in
  • Width (In.) 2 in
See all product information

Product Information

Dimensions

Depth (In.) 1 1/2 in
Width (In.) 2 in
Height (In.) 1 in
Overall Width 2 in
Mounting Base Length 2 in
Overall Depth 1 1/2 in
Mounting Base Width 1 5/8 in
Overall Height 1 in

Details

Item Thermostat
Temp. Range (F) 150 to 170
Type Limit, Automatic Reset
Switch Type SPDT
Switch Closes @ (F) 150 Degrees F
Switch Opens @ (F) 170 Degrees F
Voltage Range 120 to 240
Resistive Amps @ 120V 25 A
Resistive Rating 240V 25
Pilot Duty Contacts (VA) 125 VA
Element Type Insertion
Differential 20
Resistive Rating Circuit #1 @120/240V 25
Switch Action Open and Close on Rise
Circuit No. 1-Inductive 240V 10
Inductive Amps @ 120V 14 A
Circuit #1 Switch Closes @ (F) 150 Degrees F
Inductive Amps @ 240V 10 A
Circuit No. 1-Inductive 120V 14
Fan Off Temp. (F) 150 Degrees F
Fan On Temp. (F) 170 Degrees F
Circuit #1 Switch Opens @ (F) 170 Degrees F
Minimum Control Temperature 150 Degrees F
Resistive Amps @ 120V AC 25 A
Switch Closing Temperature 150 Degrees F
Standards CSA Certified, UL Listed
Input Voltage 240V AC
Switch Opening Temperature 170 Degrees F
Resistive Amps @ 240V AC 25 A
Series LD
Reset Type Automatic Reset
Mounting Surface Mount
Maximum Control Temperature 170 Degrees F
Application Limit Control with Fan Bypass
Contact Form SPDT
Temperature Differential 20 Degrees F
Product Type Thermostat

Description

Thermostat, Application Limit Control with Fan Bypass, Mounting Surface Mount, Contact Form SPDT, Switch Action Open and Close on Rise, Reset Type Automatic Reset, Switch Closing Temperature 150 Degrees F, Switch Opening Temperature 170 Degrees F, Input Voltage 240V AC, Maximum Control Temperature 170 Degrees F, Minimum Control Temperature 150 Degrees F, Mounting Base Length 2 in, Mounting Base Width 1 5/8 in, Product Type Thermostat, Temperature Differential 20 Degrees F, Overall Depth 1 1/2 in
