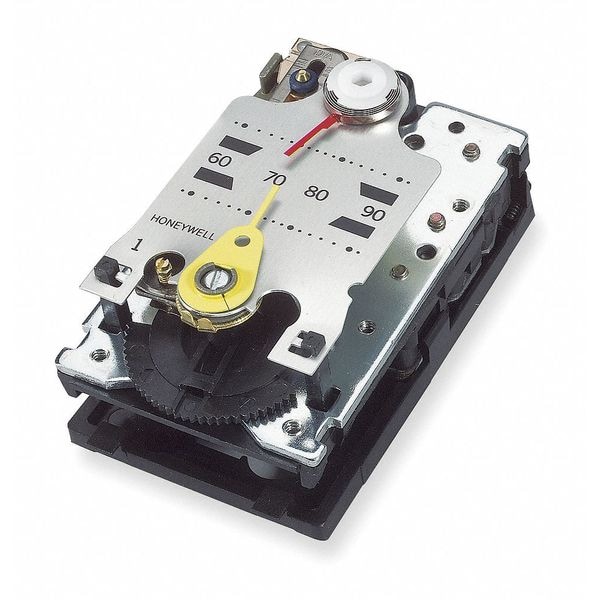

Honeywell Pneumatic Thermostat Conversion Kit, Single Temperature, Heating, 2 Pipe, Vertical, 1/8 in TP970A2145/U - main

Pneumatic Thermostat Conversion Kit, Single Temperature, Heating, 2 Pipe, Vertical, 1/8 in

  • Mfr # TP970A2145/U

  • Zoro # G0614826

product price:  $363.99
/ea
Free Shipping & Returns

Key Features

Action Type - Pneumatic Thermostats
Direct Acting
No. of Pipes
2 Pipe
Thermostat Application
Heating
Temperature Output Settings
Single Temperature
Air Connections
1/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TP970A2145/U
Zoro #
G0614826
UPC #
085267101554
Country of Origin
United States

Dimensions

Height
3 1/4 in
Width
2 in
Depth
1 5/8 in
Overall Height
3 1/4 in
Overall Depth
1 5/8 in
Overall Width
2 in

Details

Item
Pneumatic Thermostat Conversion Kit
Action Type - Pneumatic Thermostats
Direct Acting
No. of Pipes
2 Pipe
Thermostat Application
Heating
Temperature Output Settings
Single Temperature
Air Connections
1/8 in
Temp. Control Range
60 Degrees to 90 Degrees F
Includes
Wall Plate
Throttling Range
2 to 10F
Reverse Acting / Direct Acting
Direct Acting
Single Temp. / Dual Temp.
Single Temperature
Element Type
Bi-Metal
Air Consumption
0.011 scfm
Max. Ambient Temp.
100 Degrees F
Max. Air Pressure
25 psi
Heating / Cooling
Heating
1 Pipe / 2 Pipe
2 Pipe
Mounting Style
Vertical
Sensor Type
Bi-Metallic Spring
Control Type
Exposed Setpoint Knob
Application
Heat or Cool
Action Type
Direct Acting
Number of Pipes/Air Flow Output
2 Pipes, High Volume
Number of Pipes
2
Number of Dials
Single
Cover Color
Silver
Mounting Direction
Vertical
Maximum Air Pressure
25 psi
Thermostat Action/Application
Direct/Heat or Cool
Action
Direct
Replaces Brand/Manufacturer Model Number
Johnson Control, Powers, Robertshaw, Barber-Colman, and obsolete Honeywell (2-pipe)
Air Restrictor Required
No
Maximum Control Temperature
90 Degrees F
Thermostat Action
Direct
Temperature Settings
Single Temperature
Air Flow Output
High Volume
Air Connection Type
Dual Barbed Fittings
Temperature Scale
Fahrenheit
Compatible System Type
Damper Actuators, Pneumatic Valves
Mounting Direction/Cover Color
Vertical/Silver
Manufacturer Model Number
TP970A2145
Replaces Brand
Barber-Colman, Johnson Controls, Obsolete Honeywell (2-pipe), Powers, Robertshaw
Minimum Control Temperature
59 Degrees F

Description

Pneumatic Thermostat, Type 2 Pipe, 1 Temperature, Temperature Setting Range 60 to 90 Degrees Fahrenheit, Contact Action DA, Air Consumption 0.011 SCFM, Maximum Safe Air Pressure 25 PSI, Maximum Safe Operating Temperature 100 Degrees Fahrenheit, Maximum Safe Storage Temperature 150 Degrees Fahrenheit, Throttling Range 2 to 10 (Factory Set @ 4) Degrees Fahrenheit, Height 3 1/4 Inches, Width 2 Inches, Depth 1 5/8 Inches
