  11. Pneumatic Thermostat, Single Temperature, Heating, 2 Pipe, Vertical, 1/8 in

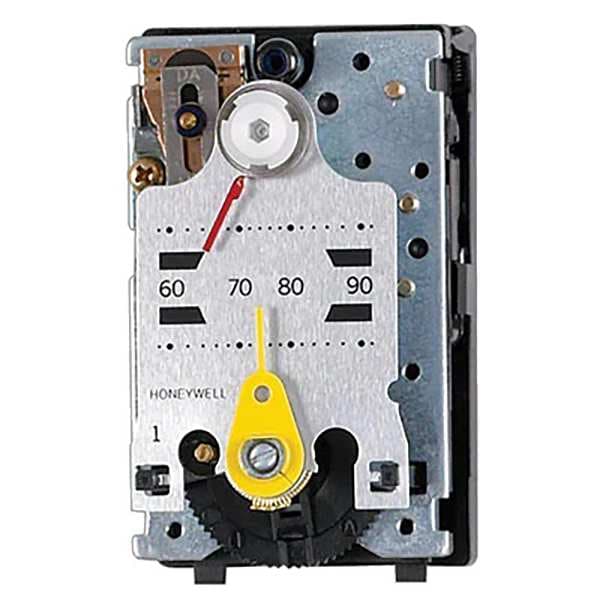

Honeywell Pneumatic Thermostat, Single Temperature, Heating, 2 Pipe, Vertical, 1/8 in TP970A2004/U - main

Pneumatic Thermostat, Single Temperature, Heating, 2 Pipe, Vertical, 1/8 in

  • Mfr # TP970A2004/U

  • Zoro # G0986246

product price: $209.99
/ea
Free Shipping & Returns

Key Features

Action Type - Pneumatic Thermostats
Direct Acting
No. of Pipes
2 Pipe
Thermostat Application
Heating
Temperature Output Settings
Single Temperature
Air Connections
1/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TP970A2004/U
Zoro #
G0986246
UPC #
085267101479
Country of Origin
United States

Dimensions

Height
3 1/4 in
Width
2 in
Depth
1 5/8 in
Overall Width
2 in
Overall Height
3 1/4 in
Air Connection Outside Diameter
1/8 in
Overall Depth
1 5/8 in

Details

Item
Pneumatic Thermostat
Action Type - Pneumatic Thermostats
Direct Acting
No. of Pipes
2 Pipe
Thermostat Application
Heating
Temperature Output Settings
Single Temperature
Air Connections
1/8 in
Temp. Control Range
60 Degrees to 90 Degrees F
Element Type
Bi-Metal
Single Temp. / Dual Temp.
Single Temperature
1 Pipe / 2 Pipe
2 Pipe
Air Consumption
19 scim
Heating / Cooling
Heating
Reverse Acting / Direct Acting
Direct Acting
Max. Air Pressure
25 psi
Max. Ambient Temp.
100 Degrees F
Mounting Style
Vertical
Throttling Range
2 Degrees to 10 Degrees F
Sensor Type
Bi-Metallic Spring
Application
Heat or Cool
Control Type
Exposed Dial
Type
1- or 2-Pipe, Single or 2 Temp.
Action Type
Direct Acting
Number of Pipes
2
Maximum Air Pressure
25 psig
Action
Direct
Maximum Control Temperature
90 Degrees F
Temperature Control Range
60 Degrees to 90 Degrees F
Mounting Direction
Vertical
Mounting Direction/Includes Cover
Vertical, No
Manual Indexing Switch
No
Thermostat Action
Direct
Air Flow Output
High Volume
Temperature Settings
Single Temperature
Temperature Scale
Fahrenheit
Number of Dials
Single
Number of Pipes/Air Flow Output
2 Pipes, High Volume
Minimum Control Temperature
59 Degrees F
Compatible System Type
Pneumatic Valves and Damper Actuators

Description

Pneumatic Thermostat, Direct Acting, 2 Pipe, Heating, Single Temperature, Air Connections 1/8 in, Element Type Bi-Metal, Max. Air Pressure 25 psi, Max. Ambient Temp. 100 Degrees F, Mounting Style Vertical, Height 3 1/4 in, Width 2 in, Depth 1 5/8 in, Temp. Control Range 60 Degrees to 90 Degrees F, Air Consumption 19 scim, Throttling Range 2 Degrees to 10 Degrees F
