Honeywell Single-Gas Detector, Audible, Vibrating, Visual, 1 yr Battery Life BWS1-D-Y - main

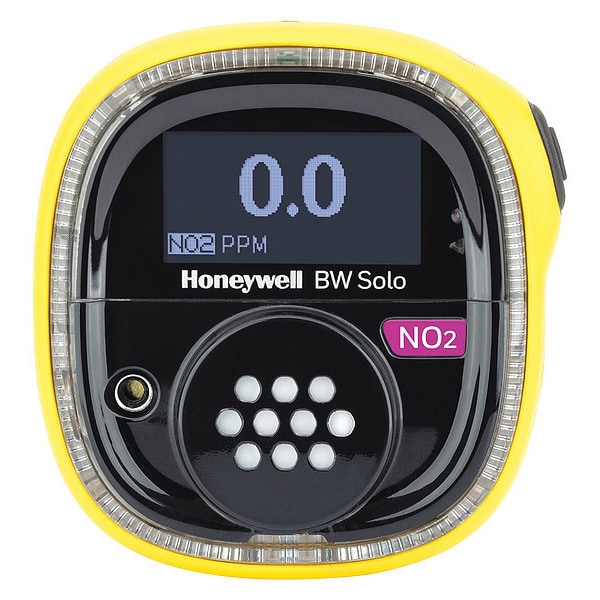

Single-Gas Detector, Audible, Vibrating, Visual, 1 yr Battery Life

  • Mfr # BWS1-D-Y

  • Zoro # G3943665

product price: $638.99
/ea
Free Shipping & Returns

Key Features

Gas Type
NO2
Operating Temp. Range
-20 Degrees to 50 Degrees C, -4 Degrees to 122 Degrees F
Alarm Setting
High 5 ppm, Low 2 ppm
Detects
Nitrogen Dioxide
Standards
ABS Type Approved 21-2143903-PDA, AEx/Ex ia IIC T4 Ga -40 Degrees C Less Than or Equal To Tamb Less Than or Equal To 60 Degrees C, ATEX Sira 18ATEX2243, CSA Certified, CE 2460 Ex II 1G Ex ia IIC T4 Ga, Ex I M1 Ex ia I Ma -40 Degrees C Less Than or Equal To Tamb Less Than or Equal To 60 Degrees C, FCC ID: SU3BWS1, IC:20969-BWS1, IECEX: IECEX SIR 18.0058 Ex ia IIC T4 Ga/Ex ia I Ma -40 Degrees C Less Than or Equal To Tamb Less Than or Equal To 60 Degrees C, INMETRO: DNV 19.0109 Ex ia IIC T4 Ga -40 Degrees C Less Than or Equal To Ta Less Than or Equal To 60 Degrees C, RED:RE-D Directive 2014/53/EU
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BWS1-D-Y
Zoro #
G3943665
UPC #
-
Country of Origin
Mexico

Dimensions

Height
2 5/8 in
Width
2 5/8 in
Depth
1 5/8 in
Manufacturer Warranty Length
3 yr
Overall Depth
1.4 in
Overall Width
2.6 in
Battery Size
2/3 AA
Overall Height
2.7 in

Details

Item
Single-Gas Detector
Gas Type
NO2
Operating Temp. Range
-20 Degrees to 50 Degrees C, -4 Degrees to 122 Degrees F
Alarm Setting
High 5 ppm, Low 2 ppm
Detects
Nitrogen Dioxide
Standards
ABS Type Approved 21-2143903-PDA, AEx/Ex ia IIC T4 Ga -40 Degrees C Less Than or Equal To Tamb Less Than or Equal To 60 Degrees C, ATEX Sira 18ATEX2243, CSA Certified, CE 2460 Ex II 1G Ex ia IIC T4 Ga, Ex I M1 Ex ia I Ma -40 Degrees C Less Than or Equal To Tamb Less Than or Equal To 60 Degrees C, FCC ID: SU3BWS1, IC:20969-BWS1, IECEX: IECEX SIR 18.0058 Ex ia IIC T4 Ga/Ex ia I Ma -40 Degrees C Less Than or Equal To Tamb Less Than or Equal To 60 Degrees C, INMETRO: DNV 19.0109 Ex ia IIC T4 Ga -40 Degrees C Less Than or Equal To Ta Less Than or Equal To 60 Degrees C, RED:RE-D Directive 2014/53/EU
Features
Compatible with Honeywell IntelliDoX, Complete with an Extensive Selection of Sensor Options, Connected Bluetooth Low Energy (BLE) Capabilities Quick Specs, Display for Multiple Languages, Serviceability, User-Friendly Operation
Includes
Concussion Proof Housing, Stainless Steel Alligator Clip, Test Cap with 1 ft of Hose
Housing Color
Yellow
Interchangeable Sensors
No
IP Rating
IP68
Power Source
Battery
Battery Type
Lithium
Alarm Type
Audible, Vibrating, Visual
Sensor Range
0 to 100 ppm
Resolution
0.1 ppm
Sensor Life
2 yr
Display
LCD
Battery Life
1 yr
Status Indicator
LED
Operating Frequency
2402 to 2480 MHz
Maintainability
Maintainable
Operating Humidity - Maximum
95 %
Operating Humidity - Minimum
5 %
Series
BW Solo
Number of Gases Detected
1
Mount Type
Portable/Handheld
For Location
Outdoor
Compatible Systems and Services
Android, iOS
Resistance Properties
Dust Resistant, Water Resistant
Alarm Setting Adjustment
Adjustable Alarm Setting
Data Logger
Yes
Number of Sensors
1
Replaceable Battery
Yes
Rechargeable Battery
No
Chemical Formula
CIO2, CL2, CO, ETO, H2, H2S, HCN, NH3, NO, NO2, O2, O3, PH3, SO2
Visual Alert Type
Red LED
Operating Temperature - Minimum
-40 Degrees F
Display Type
Digital
Sensor Type
Electrochemical
Measurement Range
Nitrogen Dioxide (0 to 100 ppm)
Temperature Code
T4
Battery Chemistry
Lithium
Operating Temperature - Maximum
140 Degrees F
Alarm Volume Level
95 dB
Communication Protocol
Bluetooth
Alert Type
Light, Sound, Vibration
Hazardous Location Specification
Class I Divisions 1, Zone 0 Groups IIC
Includes Probe
No
Voltage
3.6V
Operating Voltage
3.6V

Description

Single-Gas Detector, Replaceable Battery Yes, Product Type Single-Gas Detector, Display Screen Type LCD Dot Matrix, Includes Probe No, Housing Color Yellow, Gas Detected Nitrogen Dioxide, Communication Protocol Bluetooth, Series BW Solo, Sub-Brand BW, Battery Size 2/3 AA, Operating Humidity - Maximum 95 Percent, Status Indicator LED, Rechargeable Battery No, Resistance Properties Dust Resistant, Water Resistant, Operating Humidity - Minimum 5 Percent, Sensor Type Electrochemical

Restrictions

Hazardous material
